Forklift · Linde

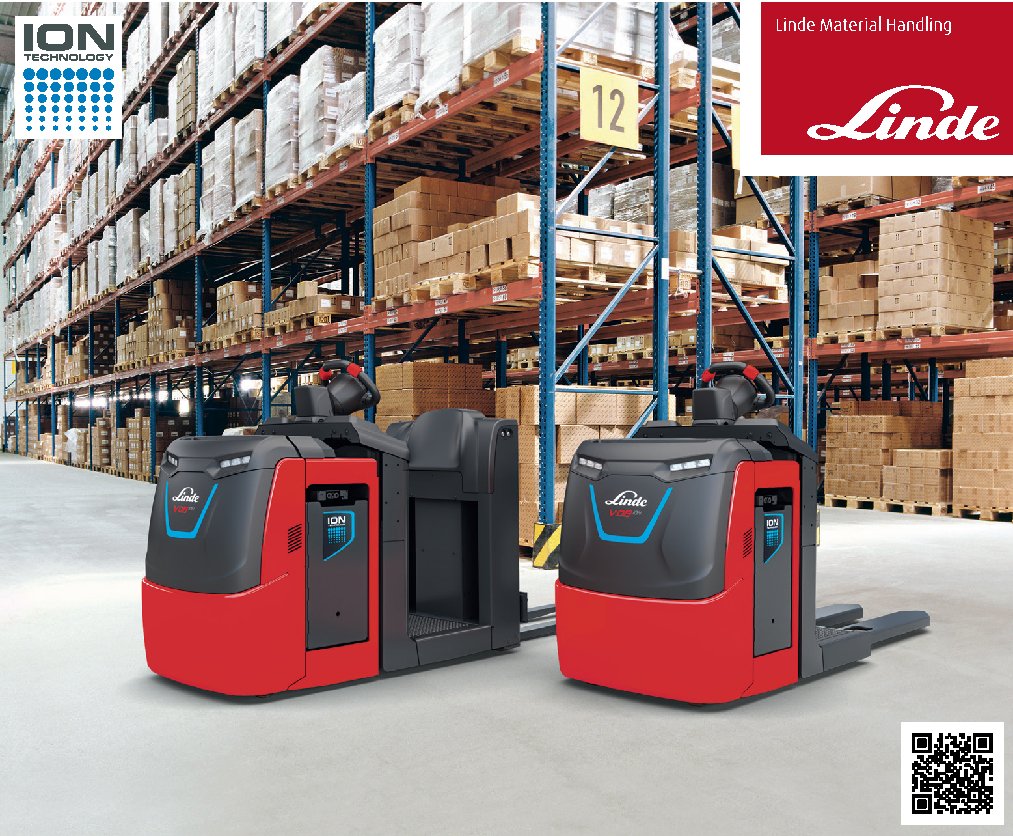

Linde V08-02 Specs
Quick-reference specifications for the Linde V08-02 forklift, from the manufacturer’s spec sheet and published specifications.
- Operating Weight
- 3,503 lb1.55 t
Performance 8 specs
| Load Capacity | 1,760 lb (800 kg) |
|---|---|
| Max Travel Speed (loaded) | 6.2 mph (10 km/h) |
| Max Travel Speed (unloaded) | 6.2 mph (10 km/h) |
| Hoisting Speed (with load) | 0.14 m/s |
| Hoisting Speed (without load) | 0.19 m/s |
| Lowering Speed (with load) | 0.35 m/s |
| Turning Radius | 61.7 in (1.66 m) |
| Load Centre of Gravity | 500 mm |
Dimensions 8 specs
| Forks dimensions | 560 / 1150 / 60 mm |
|---|---|
| Overall Length to Fork Face | 113.4 in (2.88 m) |
| Transport Width | 31.5 in (0.8 m) |
| Transport Height (lowered) | 50.9 in (1.29 m) |
| Max Lift Height | 41.9 in (1.07 m) |
| Aisle Width Required | 3.17 m |
| Fork Length | 47.2 in (1.2 m) |
| Platform Entry Height | 14.5 cm |
Weight 3 specs
| Operating Weight | 3,503 lb (1.55 t) |
|---|---|
| Battery Weight | 0.4 t |
| Empty Vehicle Weight | 1,550 kg |
Power / Engine 8 specs
| Battery according to DIN | 43531 / 35 / 36 A. B. C. no |
|---|---|
| Support data terminal and power supply cable | 24 V |
| Battery compartment, lateral change | 3 PzS (300 Ah / 375 Ah) |
| Traction Motor Power | 3 kW |
| Hoist Motor Power | 3 kW |
| Engine Rating | 2.3 kW AC |
| Battery Voltage/Capacity | 24 V / 400-500 Ah |
| Platform Lift Height | 1.2 m |
Hydraulics / Fluids 1 spec
| Lifting Platform | 1.2 m height |
|---|
