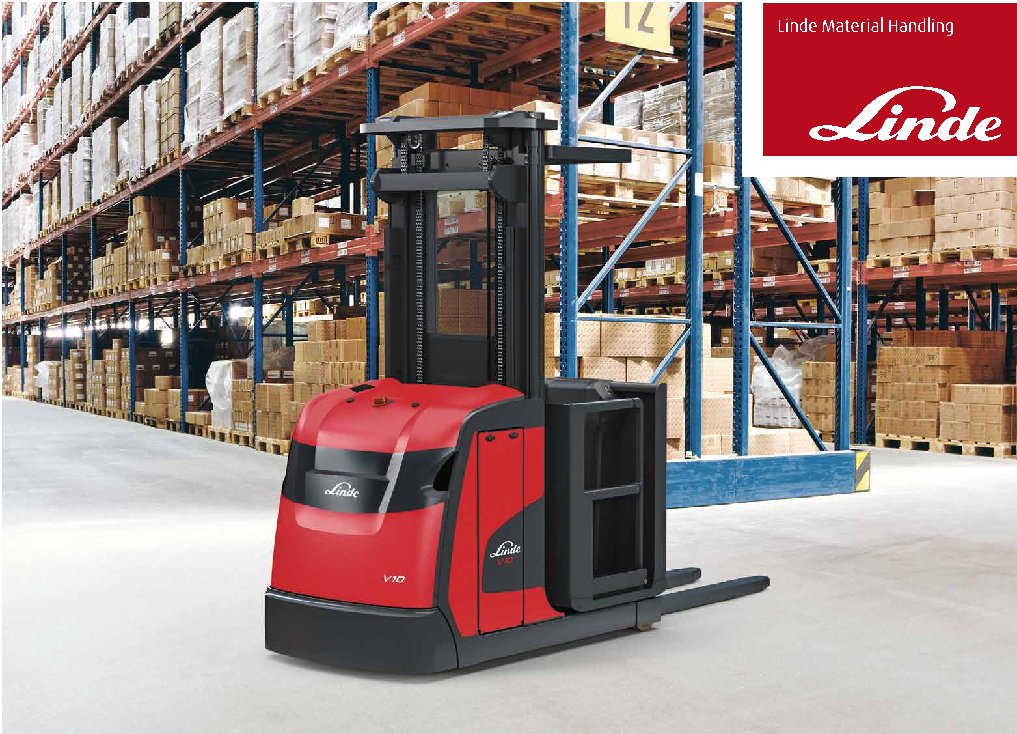

Linde V10-02 Specs

Quick-reference specifications for the Linde V10-02 forklift, taken from the manufacturer’s spec sheet.

Performance 9 specs

Capacity / Load	1.0 t
Turning radius Wa	1485 mm
Travel speed, with /without load	9 / 9 km/h
Lifting speed, with /without load	0.18 / 0.25 m/s
Lowering speed, with /without load	0.3 / 0.24 m/s
Acceleration time, with /without load	7.0 / 7.0 s
Service brake	Regenerative
Type of drive unit	Microprocessor
Sound pressure level LpAZ (at the driver’s seat)	61 dB (A)

Load centre distance c	400 mm
Axle centre to fork face x	180 mm
Wheelbase y	1270 mm
Tyre size, front	Ø 250 x 100
Tyre size, rear	Ø 120 x 50
Track width, front b	0 mm
Track width, rear b	660 mm
Height of mast, lowered h	2120 mm
Lift h	1500 mm
Height of mast, extended h	3760 mm
Height of overhead guard (cabin) h	2260 mm
Height of seat / stand on platform h	200 mm
Supplementary lift h	800 mm
Platform height, raised h	1700 mm
Height, lowered h	65 mm
Overall length l	2465 mm
Length to fork face l	1665 mm
Overall width b1 / b	790 / 790 mm
Fork dimensions DIN ISO 2331 s / e / l	60 x 120 x 800 mm
Width of fork carriage b	660 / 740 mm
Fork spread b	560 / 640 mm
Width over side guide rollers b	1185 mm
Ground clearance, below mast m	40 mm
Ground clearance, centre of wheelbase m	40 mm
Aisle width with pallet 800 x 1200 along forks Ast	1190 mm

Service weight	1754 kg
Axle load without load, front/rear	597 / 2157 kg
Axle load with load, front / rear	1054 / 700 kg

Drive motor, rating S2 60 min	3 kW
Lift motor, rating at S3 15 %	4 kW
Battery according to DIN 43531 / 35 / 36 A, B, C, no	43 535 / B
Battery weight (± 5 %)	385 kg
