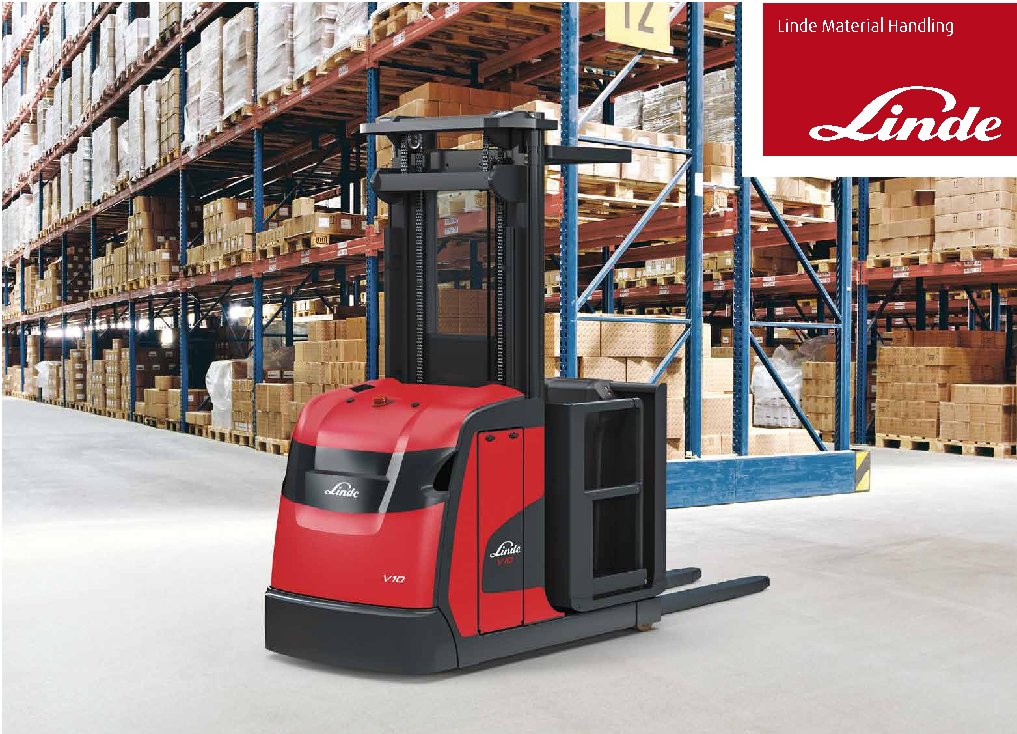

Linde V10 Specs

Quick-reference specifications for the Linde V10 forklift, taken from the manufacturer’s spec sheet.

Performance 11 specs

Capacity	1000 kg
Load centre distance	400 mm
Tyres	rubber, SE, pneumatic, polyurethane
Turning radius	1485 mm
Travel speed, with /without load	9 / 9 km/h
Lifting speed, with /without load	0.18 / 0.25 m/s
Lowering speed, with /without load	0.3 / 0.24 m/s
Acceleration time, with /without load	7.0 / 7.0 s
Service brake	Regenerative
Type of drive unit	Microprocessor
Sound pressure level LpAZ (at the driver’s seat)	61 dB (A)

Axle centre to fork face	180 mm
Wheelbase	1270 mm
Tyre size, front	Ø 250 x 100
Tyre size, rear	Ø 120 x 50
Track width, front	0 mm
Track width, rear	660 mm
Height of mast, lowered	2120 mm
Lift	1500 mm
Height of mast, extended	3760 mm
Height of overhead guard (cabin)	2260 mm
Height of seat / stand on platform	200 mm
Supplementary lift	800 mm
Platform height, raised	1700 mm
Height, lowered	65 mm
Overall length	2465 mm
Length to fork face	1665 mm
Overall width	790 / 790 mm
Fork dimensions DIN ISO 2331	60 x 120 x 800 mm
Fork carriage to ISO 2328, class / type	A, B no
Width of fork carriage	660 / 740 mm
Fork spread	560 / 640 mm
Width over side guide rollers	1185 mm
Ground clearance, below mast	40 mm
Ground clearance, centre of wheelbase	40 mm
Aisle width with pallet 800 x 1200 along forks	1190 mm

Service weight	1754 kg
Axle load without load, front/rear	597 / 2157 kg
Axle load with load, front/rear	1054 / 700 kg

Drive motor, rating S2 60 min	3 kW
Lift motor, rating at S3 15 %	4 kW
Battery according to DIN 43531 / 35 / 36 A, B, C, no	43 535 / B
Battery weight (± 5 %)	385 kg
