Telehandler · Manitou

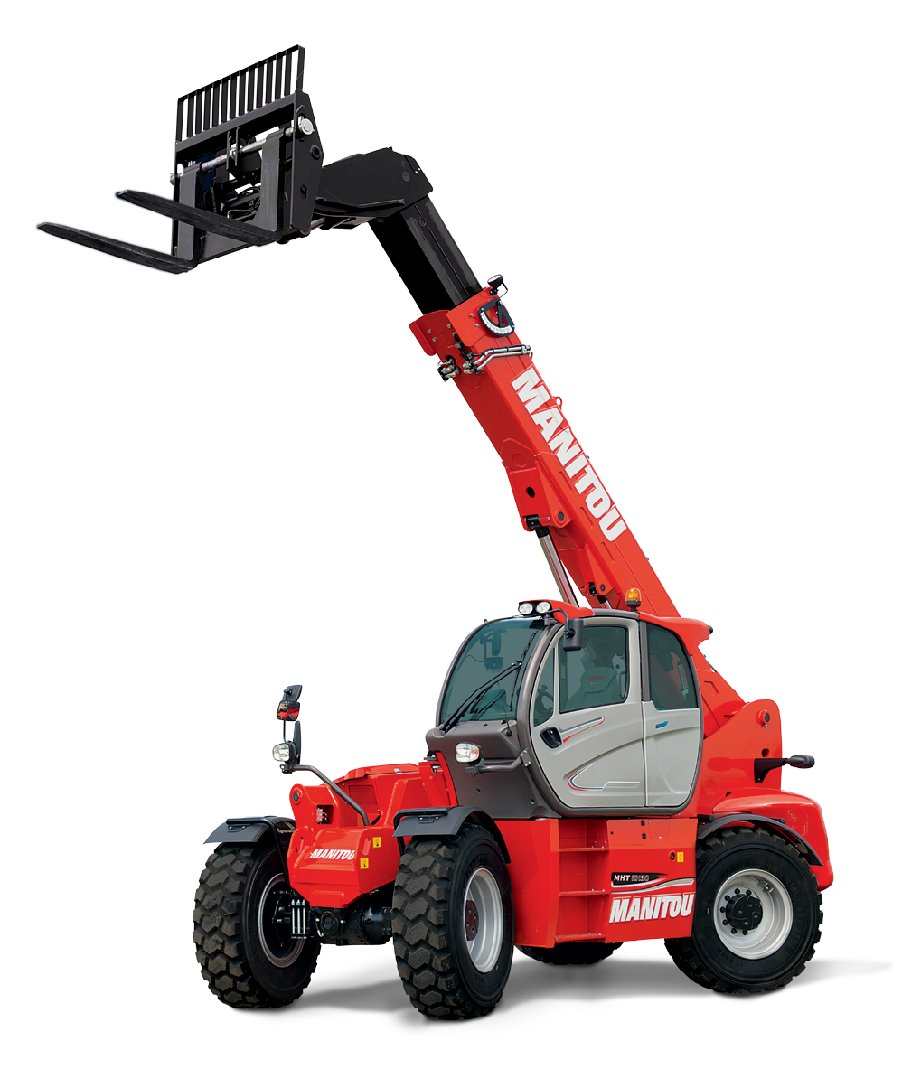

Manitou MHT10130 Specs
Quick-reference specifications for the Manitou MHT10130 telehandler, taken from the manufacturer’s spec sheet.
Performance 12 specs
| Max. Outreach | 5.17 m |
|---|---|
| Tyres | 17.5 R 25 |
| Frame levelling | +/- 10° |
| Parking brake | Automatic Negative Parking brake |
| Laden drawbar pull | 10 800 daN |
| Steering mode | 4 wheel steer – 3 steering Modes |
| Axles | DANA |
| Turning radius (over tyres) | 5.34 m |
| Cab | ROPS FOPS level II |
| Noise at driving position (LpA) | 80 dB |
| Environmental noise (LwA) | 107 dB |
| Vibration to whole hand / arm | <2.5 m/s² |
Dimensions 6 specs
| Max. lifting height | 9.62 m |
|---|---|
| Overall width | 2.51 m |
| Overall height | 2.99 m |
| Overall length to carriage | 6.14 m |
| Ground clearance | 0.44 m |
| Standard forks (length x width x thickness) | 1200 x 200 x 70 mm |
Weight 1 spec
| Unladen weight (with forks) | 18,490 kg |
|---|
Power / Engine 6 specs
| Engine | MERCEDES |
|---|---|
| Power | 176 HP (129 kW) |
| Max. torque | 750 Nm / 1200-1600 rpm |
| Batteries | 24 V – 2X12 V – 120 Ah – 850 A |
| Transmission | hydrostatic |
| Fuel | 315 l |
Hydraulics / Fluids 2 specs
| Load sensing Pump | 180 l/min – 300 bar |
|---|---|
| Hydraulic oil | 290 l |
