Telehandler · Manitou

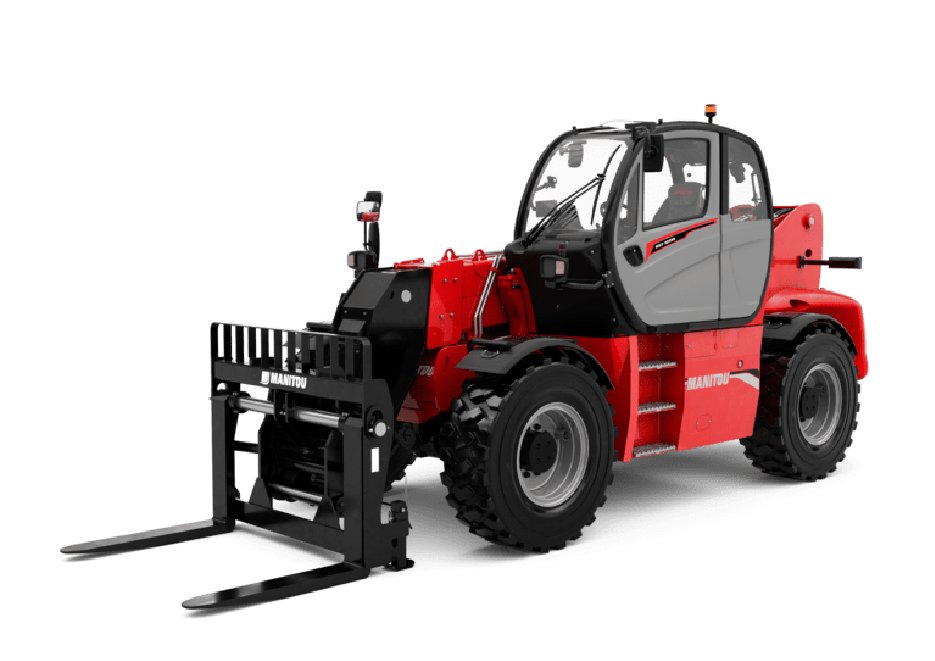

Manitou MHT10135 Specs
Quick-reference specifications for the Manitou MHT10135 telehandler, taken from the manufacturer’s spec sheet.
- Gradeability (laden / unladen)
- 32.40 % / 55.40 %
Performance 13 specs
| Max. capacity | 13500 kg |
|---|---|
| Load center of gravity c | 600 mm |
| Max. outreach | 5.20 m |
| Tilt-up angle a | 12 ° |
| Tilt-down angle a | 104 ° |
| External turning radius (over tyres) Wa | 5.35 m |
| Frame leveling corrector a | 9 ° |
| Drawbar pull | 11770 daN |
| Max. travel speed | 35 km/h |
| Parking brake | Automatic negative parking brake |
| Gradeability (laden / unladen) | 32.40 % / 55.40 % |
| Standard tires | 17,5-R25 |
| Safety cab homologation | Cabin ROPS – FOPS level |
Dimensions 9 specs
| Max. lifting height | 9.60 m |
|---|---|
| Overall length l | 7.35 m |
| Ground clearance m | 0.43 m |
| Wheelbase y | 3.37 m |
| Length to face of forks l | 6.15 m |
| Overall width b | 2.54 m |
| Overall height h | 2.99 m |
| Overall cab width b | 0.95 m |
| Forks length / width / section l / e / s | 1200 mm x 180 mm x 75 mm |
Weight 1 spec
| Unladen weight (with forks) | 19950 kg |
|---|
Power / Engine 10 specs
| Engine brand | Yanmar |
|---|---|
| Engine norm | Stage V / Tier |
| Engine model | 4TN107FTT-6SMU1 |
| I.C. Engine power rating / Power | 173 Hp (127 kW) |
| Max. torque / Engine rotation | 805 Nm@1500 rpm |
| Engine cooling system | Water |
| Number of batteries | 2 |
| Battery voltage | 12 V |
| Transmission type | Hydrostatic |
| Engine oil | 13 l |
Hydraulics / Fluids 3 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 172 l/min – 350 bar |
| Fuel tank | 315 l |
