Telehandler · Manitou

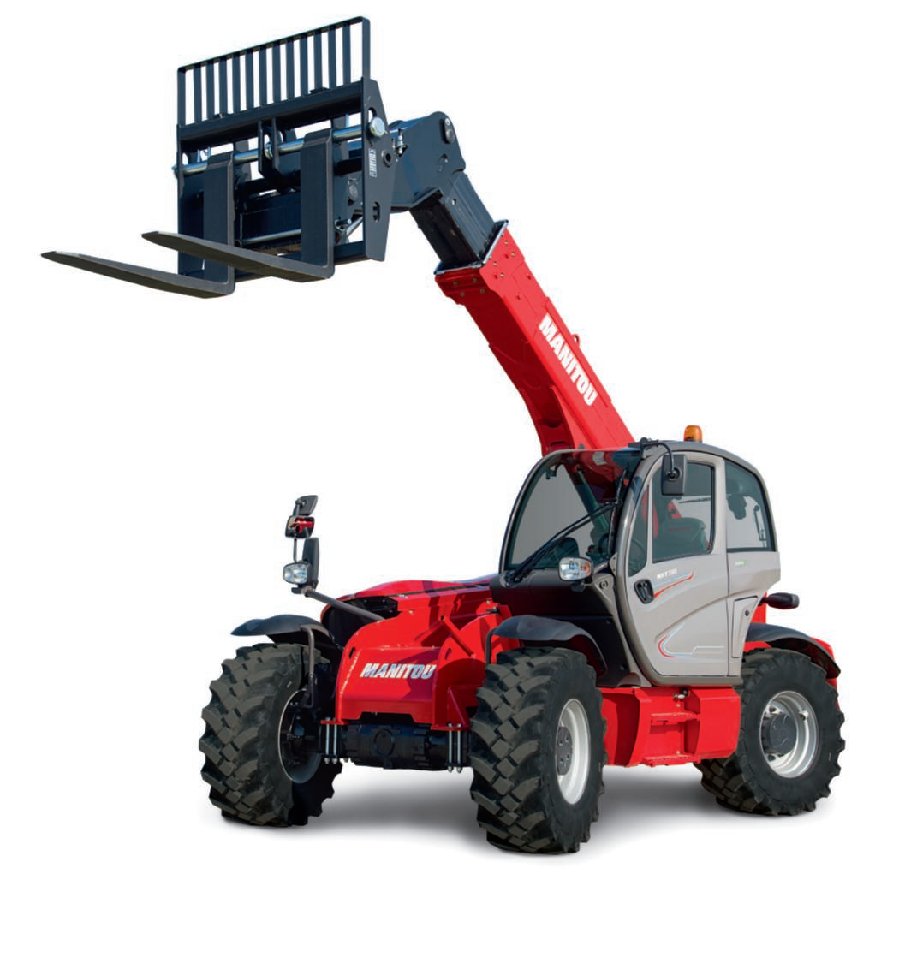

Manitou MHT790 Specs
Quick-reference specifications for the Manitou MHT790 telehandler, taken from the manufacturer’s spec sheet.
- Gradeability (laden)
- 48%
Performance 15 specs
| Max. capacity at 600 mm LC | 9,000 kg |
|---|---|
| Max. outreach | 3.72 m |
| Unladen time – Lifting | 9.2 s |
| Unladen time – Lowering | 7.8 s |
| Tyres | 445/65 R22.5 |
| Parking brake | Automatic negative parking brake |
| Laden drawbar pull | 10905 daN |
| Gradeability (laden) | 48% |
| Max. travel speed | 30 kph |
| Axle | DANA |
| Turning radius over tyres (V2) | 4.88 m |
| Carriage Rotation (crowd / dump) | 137 ° |
| Noise at driving position (LpA) | 79.7 dB |
| Environmental noise (LwA) | 103 dB |
| Vibration to whole hand/arm | <2.5 m/s² |
Dimensions 6 specs
| Max. lifting height | 6.84 m |
|---|---|
| Overall length to carriage | 5.27 m |
| Ground clearance | 0.41 m |
| Overall width | 2.47 m |
| Overall height | 2.48 m |
| Standard forks (length x width x thickness) | 1200 x 200 x 60 mm |
Weight 1 spec
| Unladen weight (with forks) | 13,020 kg |
|---|
Power / Engine 5 specs
| Displacement | 4.5 l |
|---|---|
| Power | 141 HP (104 kW) |
| Max. torque | 534 Nm / 1500 rpm |
| Transmission | Hydrostatic |
| Fuel | 150 l |
Hydraulics / Fluids 2 specs
| Load Sensing Pump | 180 l/min – 270 bar |
|---|---|
| Hydraulic oil | 151 l |
