Telehandler · Manitou

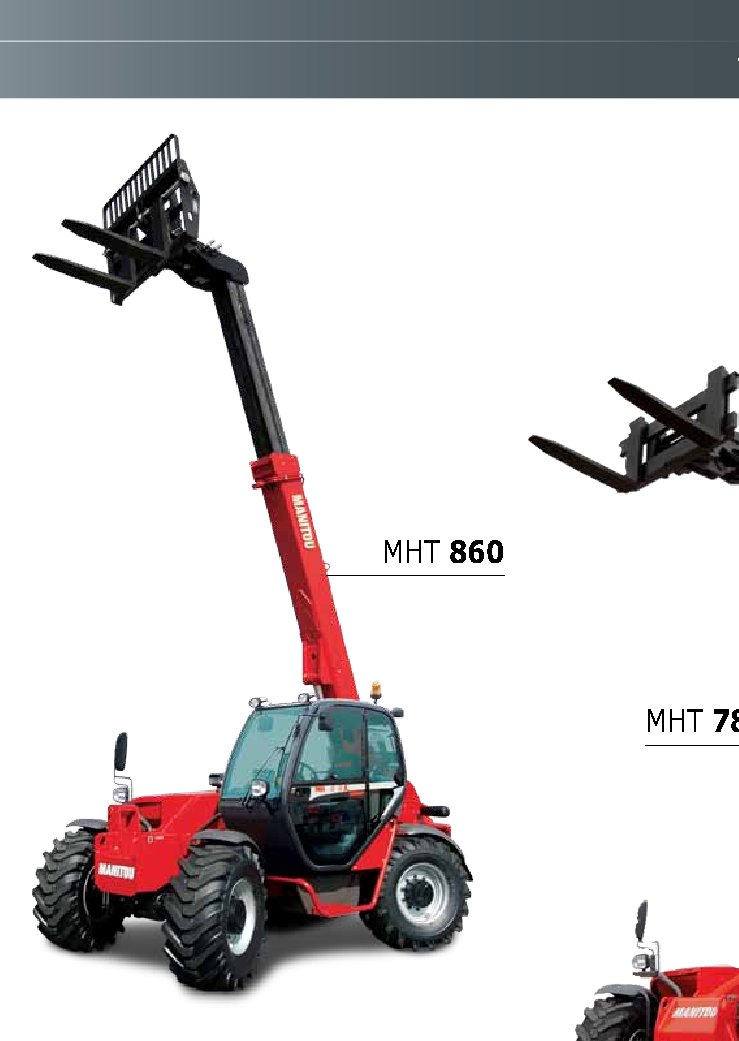

Manitou MHT860 Specs
Quick-reference specifications for the Manitou MHT860 telehandler, taken from the manufacturer’s spec sheet.
- Gradeability (unladen/laden)
- 75% / 49%
Performance 16 specs
| Max. capacity at 600 mm LC | 6000 kg |
|---|---|
| Unladen time – Lifting | 11.5 s |
| Unladen time – Lowering | 7.8 s |
| Tyres | 18-22.5 16 PR |
| Parking brake | automatic negative handbrake |
| Laden drawbar pull | 10500 daN |
| Gradeability (unladen/laden) | 75% / 49% |
| Axle | DANA |
| Steering mode | 4 wheel steer 3 steering modes |
| Turning radius (over tyres) | 3.78 m |
| Frame levelling | +/- 10° |
| Carriage rotation (crowd/dump) | 11°/123° |
| Noise at driving position (LpA) | 80.8 dB |
| Environmental noise (LwA) | 105 dB |
| Vibration to whole hand/arm | <2.5 m/s² |
| Vibration on driver’s body | <0.5 m/s² |
Dimensions 10 specs
| Max. lifting height | 8.10 m |
|---|---|
| Front wheel centre to carriage | 1.54 m |
| Ground clearance | 0.41 m |
| Overall length to front tyres | 5.36 m |
| Wheelbase | 2.73 m |
| Overall width of cab | 0.86 m |
| Inside tyre width | 1.93 m |
| Overall width | 2.40 m |
| Overall height | 2.46 m |
| Standard forks (length x width x thickness) | 1200 x 200 x 60 mm |
Weight 1 spec
| Unladen weight (with forks) | 11580 kg |
|---|
Power / Engine 4 specs
| Engine | PERKINS |
|---|---|
| Power | 144 HP (106 kW) |
| Max. torque | 556 Nm – 1400 rpm |
| Capacities – Fuel | 120 l |
Hydraulics / Fluids 2 specs
| Load Sensing Pump | 140 l/min – 275 bar |
|---|---|
| Capacities – Hydraulic oil | 140 l |
