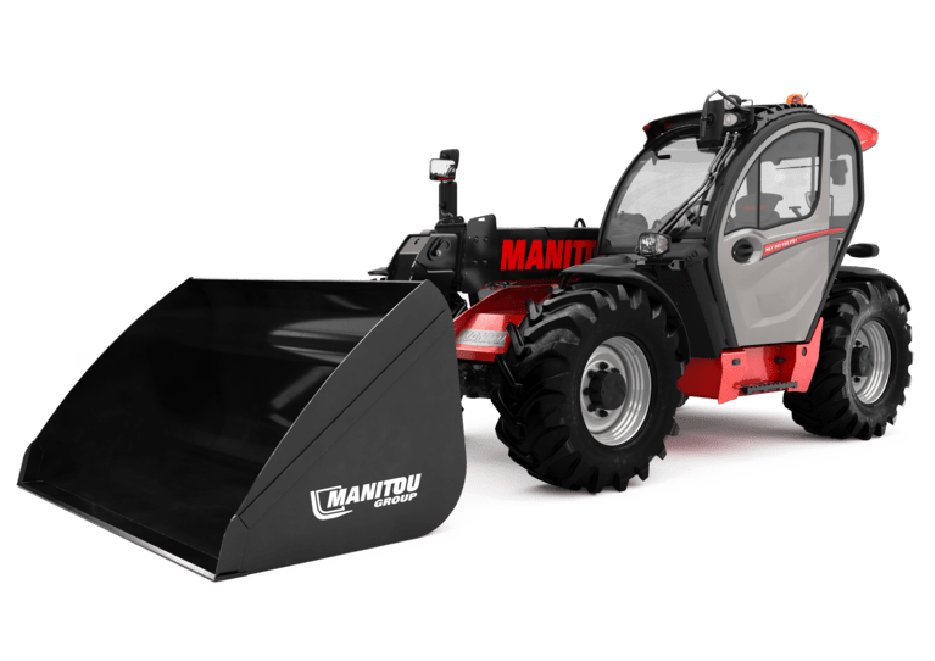

Manitou MLT741-130 PS+ Specs
Quick-reference specifications for the Manitou MLT741-130 PS+ telehandler, taken from the manufacturer’s spec sheet.
Performance 14 specs
| Max. capacity Q | 4100 kg |
|---|---|
| Max. outreach | 3.90 m |
| Reach at max. height | 1 m |
| Breakout force with bucket | 6116 daN |
| Tilt-down angle a | 134 ° |
| Tilt-up angle a | 12 ° |
| External turning radius (over tyres) Wa | 3.93 m |
| Lifting | 7 s |
| Lowering | 6 s |
| Drawbar pull (Laden) | 7800 daN |
| Parking brake | Automatic negative parking brake |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands/arms | < 2.50 m/s² |
| Safety cab homologation | Cabin ROPS – FOPS level |
Dimensions 10 specs
| Max. lifting height h | 6.90 m |
|---|---|
| Ground clearance m | 0.41 m |
| Wheelbase y | 2.81 m |
| Overall length to carriage (with hitch) l | 4.97 m |
| Overall length to carriage (without hitch) l | 4.82 m |
| Front overhang | 1.21 m |
| Overall width b | 2.39 m |
| Overall cab width b | 0.95 m |
| Overall height h | 2.38 m |
| Standard tires | Alliance – A580 – 460/70 R24 159A8 |
Weight 1 spec
| Unladen weight (with forks) | 7965 kg |
|---|
Power / Engine 6 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V / Tier 4 Final |
| Engine model | TCD 3.6 L4 |
| I.C. Engine power rating / Power | 129 Hp (95 kW) |
| Max. torque / Engine rotation | 500 Nm @1600 rpm |
| Transmission type | Torque converter |
Hydraulics / Fluids 3 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow – Pressure | 150 l/min – 270 bar |
| Fuel tank | 120 l |
