Telehandler · Manitou

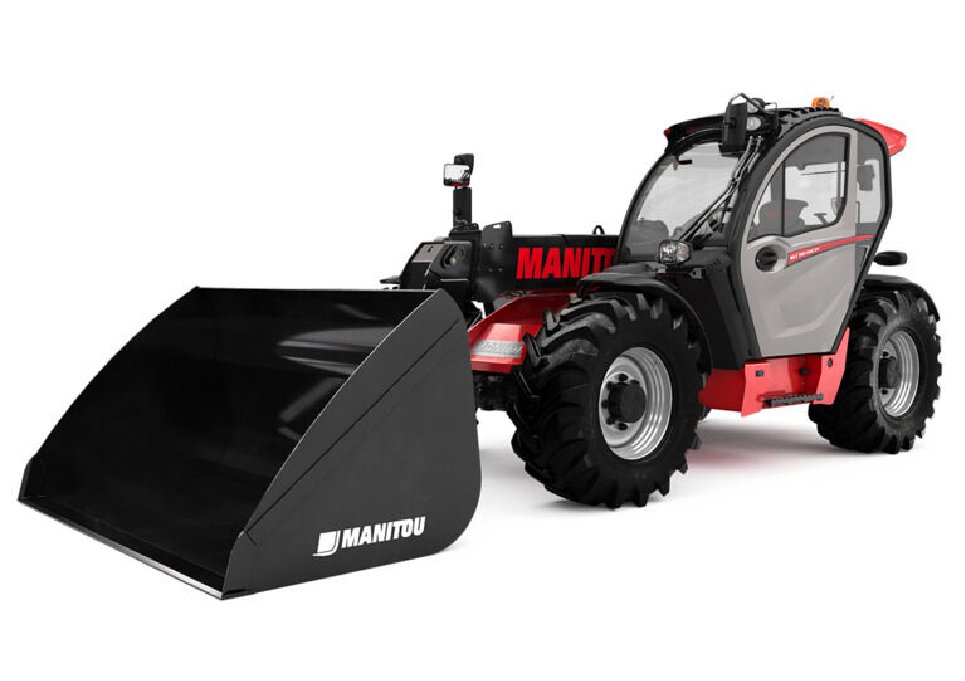

Manitou MLT741-140V+ Specs
Quick-reference specifications for the Manitou MLT741-140V+ telehandler, taken from the manufacturer’s spec sheet.
Performance 12 specs
| Max. capacity | 4100 kg |
|---|---|
| Max. outreach | 3.90 m |
| Reach at max. height | 1 m |
| Breakout force with bucket | 5992 daN |
| Lifting | 7 s |
| Lowering | 6 s |
| Drawbar pull (Laden) | 6200 daN |
| Tilt-down angle | 134° |
| Tilt-up angle | 12° |
| External turning radius (over tyres) | 3.93 m |
| Environmental noise (LwA) | 105 dB |
| Vibration to whole hand/arm | < 2.50 m/s² |
Dimensions 9 specs
| Max. lifting height | 6.90 m |
|---|---|
| Ground clearance | 0.42 m |
| Wheelbase | 2.81 m |
| Overall length to carriage (with hitch) | 4.97 m |
| Front overhang | 1.21 m |
| Overall width | 2.39 m |
| Overall cab width | 0.95 m |
| Overall height | 2.38 m |
| Standard tyres | Alliance – A580 – 460/70 R24 159A8 |
Weight 1 spec
| Unladen weight (with forks) | 7755 kg |
|---|
Power / Engine 7 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V / Tier 4 Final |
| Engine model | TCD 3.6 L4 |
| I.C. Engine power rating / Power (kW) | 136 Hp (100 kW) |
| Max. torque / Engine rotation | 500 Nm @ 1600 rpm |
| Transmission type | CVT |
| Parking brake | Automatic negative parking brake |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Load sensing pump |
|---|---|
| Hydraulic flow – Pressure | 170 l/min – 270 Bar |
| Hydraulic oil | 135 l |
| Fuel tank | 120 l |
