Telehandler · Manitou

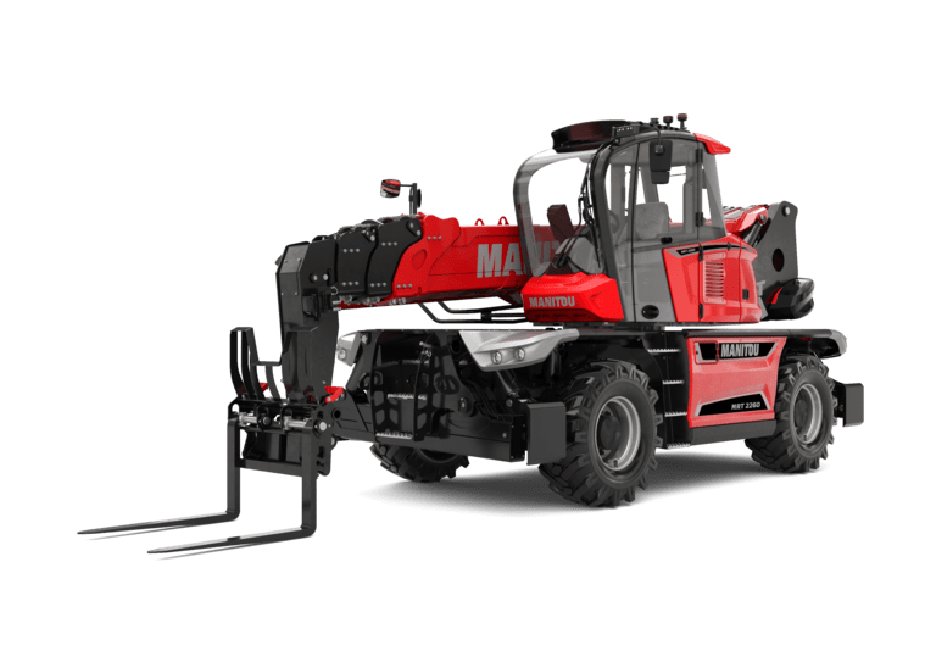

Manitou MRT2260 Specs

Quick-reference specifications for the Manitou MRT2260 telehandler, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Gradeability (laden / unladen): 40.40 % / 45.50 %

Performance 17 specs

Max. capacity	13228 lb
Maximum outreach	59 ft 9 in
Tilt-up angle a	12 °
Tilt-down angle a	110 °
Turret rotation	360 °
External turning radius (over tyres) Wa	14 ft 8 in
Frame leveling corrector a	+/- 7 °
Standard tires	445/65 R22,5
Stabilizers Type	Telescopic Duplex
Max. travel speed	25 mph
Drawbar pull	8600 daN
Parking brake	Automatic negative parking brake
Gradeability (laden / unladen)	40.40 % / 45.50 %
Noise at driving position (LpA)	68 dB
Noise to environment (LwA)	108 dB
Vibration on hands/arms	< 2.50 m/s²
Cab certification	Cabin ROPS – FOPS level

Dimensions 14 specs

Max. lifting height	71 ft 6 in
Overall length (with forks) l	26 ft 10 in
Length to face of forks l	22 ft 10 in
Overall width b	8 ft 2 in
Overall height h	10 ft 2 in
Overall cab width b	3 ft 2 in
Ground clearance m	1 ft 3 in
Wheelbase y	10 ft
Length of frame l	18 ft 8 in
Counterweight offset (turret at 90°) a	9 ft 9 in
Overall length at stabilisers l	17 ft 5 in
Overall width with stabilisers extended b	19 ft
Ground clearance under front tires on stabilizers m	1 ft 3 in
Forks length / width / section l / e / s	47 in x 4 in x 2 in

Weight 1 spec

Overall weight	39683 lb

Power / Engine 9 specs

Engine brand	Yanmar
Engine norm	Stage V, Tier
Engine model	4TN107FHT-6SMU1
I.C. Engine power rating / Power	156 Hp (115 kW)
Engine cooling system	Water cooled
Number of batteries / Battery voltage	2 x 12 V
Battery starting current (EN)	850 A
Transmission type	Hydrostatic
Engine oil	3 US gal

Hydraulics / Fluids 4 specs

Hydraulic pump type	Variable displacement pump
Hydraulic flow	45 US gpm
Hydraulic Pressure	5076 PSI
Fuel tank	71 US gal
