Telehandler · Manitou

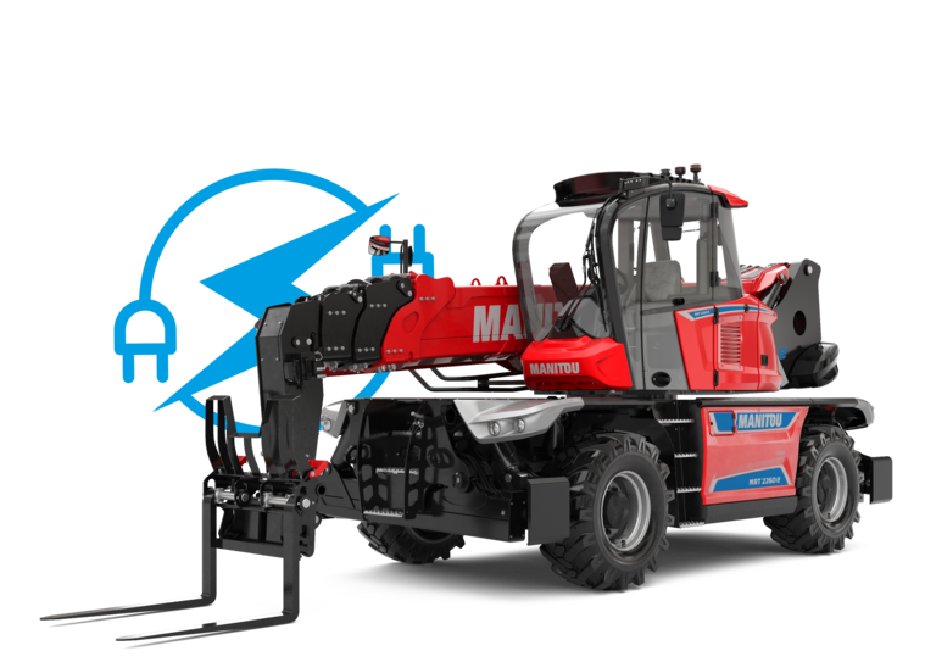

Manitou MRT2260E Specs
Quick-reference specifications for the Manitou MRT2260E telehandler, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Max. outreach | 59 ft 9 in (18.20 m) |
|---|---|
| Tilt-up angle | 12 ° |
| Tilt-down angle | 110 ° |
| Turret rotation | 360 ° |
| Standard tyres | 445/65 R22,5 |
| Max. travel speed | 24 mi/h (38 km/h) |
| Counterweight offset (turret at 90°) | 9 ft 9 in (2.97 m) |
| Frame levelling corrector | +/- 7 ° |
| Yanmar / Stage V / Tier | 4 |
| Yanmar / Stage V / Tier 4 | 3TNV80F-ZXKMU |
Dimensions 12 specs
| Overall length (with forks) | 26 ft 10 in (8.17 m) |
|---|---|
| Length to face of forks | 22 ft 10 in (6.97 m) |
| Overall width | 8 ft 2 in (2.50 m) |
| Overall height | 10 ft 2 in (3.10 m) |
| Overall cab width | 3 ft 2 in (0.96 m) |
| Ground clearance | 1 ft 3 in (0.38 m) |
| Wheelbase | 10 ft (3.05 m) |
| Overall weight | 39683 lb (18000 kg) |
| Forks length / width / section | 4 in x 47 in x 2 in (100 mm x 1200 mm x 60 mm) |
| Overall length at stabilisers | 17 ft 5 in (5.30 m) |
| Overall width with stabilisers extended | 19 ft (5.78 m) |
| Ground clearance under front tires on stabilizers | 1 ft 5 in (0.43 m) |
Power / Engine 13 specs
| Number of batteries / Battery | 2 x 12 V |
|---|---|
| Battery nominal voltage | 624 V |
| Battery max. voltage | 700 V |
| Battery energy | 65 kWh |
| Drive motor power | 107 kW |
| Fixed displacement piston | 175 l/min |
| Engine oil | 0.90 US gal (3.40 l) |
| Engine model | 3TNV80F-ZXKMU |
| Max. torque | 55 ft/lb (74.50 Nm) |
| Power (kW) | 18 kW (18.40 kW) |
| Engine rotation | 2800 rpm |
| Engine rotation (min) | 1900 rpm |
| I.C. Engine power rating | 25 Hp |
Hydraulics / Fluids 4 specs
| Hydraulic motor power | 84 kW |
|---|---|
| Hydraulic Pressure | 5076 PSI (350 bar) |
| Hydraulic tank capacity | 53 US gal (200 l) |
| Fuel tank | 17 US gal (65 l) |
