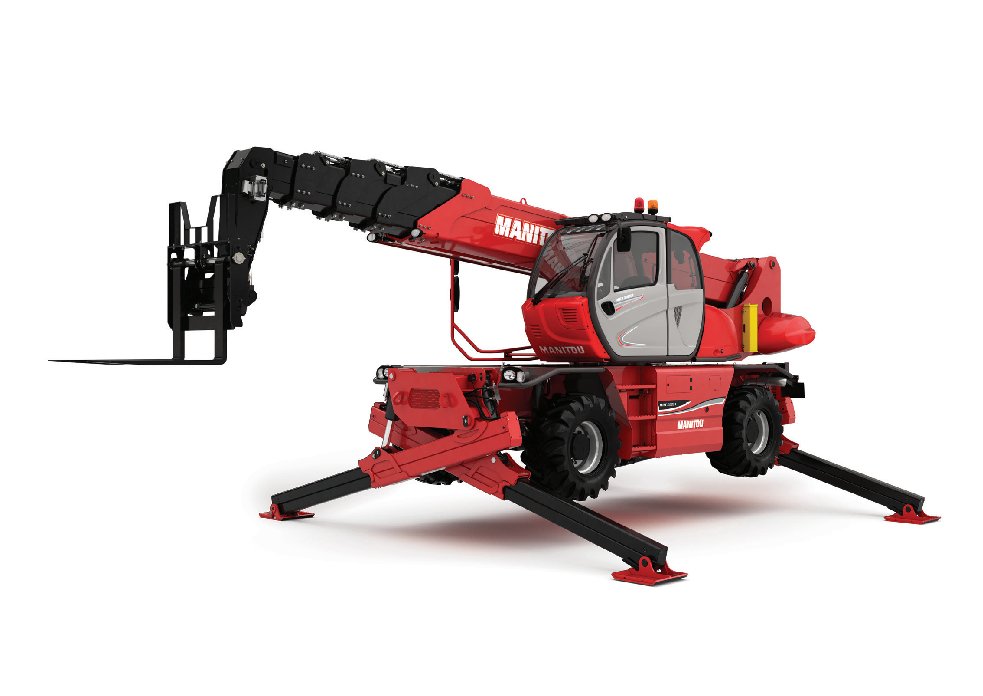

- Manitou MRT2470+
Telehandler · Manitou
Manitou MRT2470+ Specs
Quick-reference specifications for the Manitou MRT2470+ telehandler, taken from the manufacturer’s spec sheet.
- Weight
- 47972.59 lb21760 kg
Performance 9 specs
| Max. capacity | 15432.36 lb (7000 kg) |
|---|---|
| Max. reach | 65 ft 62 in (20.50 m) |
| Stabilisers – Type | Telescopic Duplex |
| Stabilisers – Controls | Individual or Simultaneous |
| Parking brake | Automatic negative parking brake |
| Service brake | Hydraulic |
| Noise at driving position (LpA) | 79.70 dB (A) |
| Noise to environment (LwA) | 108 dB (A) |
| Vibration on hands/arms | <8.2 ft/s² (<2.50 m/s²) |
Dimensions 3 specs
| Max. lift height | 81 ft 36 in (24.80 m) |
|---|---|
| Standard tyres | Pneumatic |
| Y – Wheelbase | 3.25 m |
Weight 1 spec
| Weight | 47972.59 lb (21760 kg) |
|---|
Power / Engine 2 specs
| Power | 176 hp (129 kW) |
|---|---|
| Fuel | 76.60 US gal (290 l) |
Hydraulics / Fluids 4 specs
| Type of pump | MachinePumpType.Variable |
|---|---|
| Hydraulic flow rate | 47.50 gpm (180 l/min) |
| Pressure | 5076.32 psi (350 bar) |
| Hydraulic oil | 76.60 US gal (290 l) |
