Telehandler · Manitou

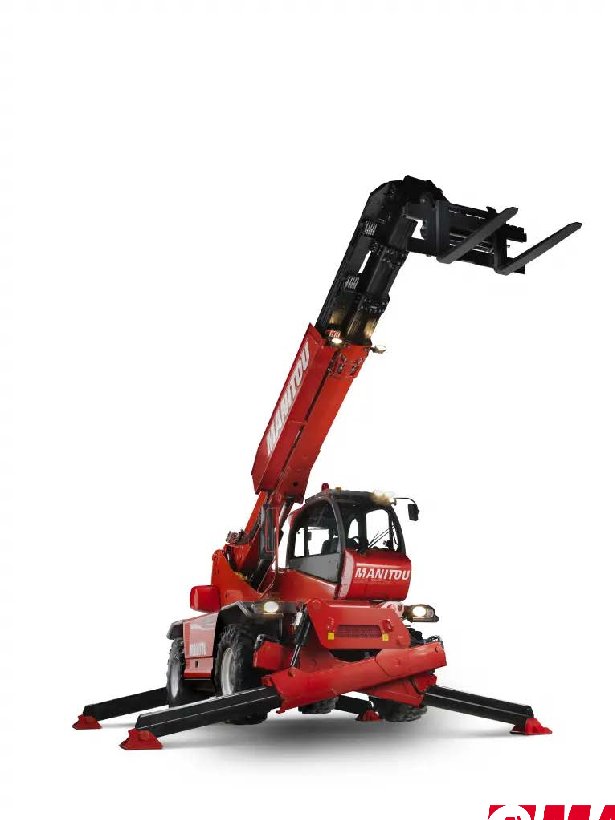

Manitou MRT2550+ Specs
Quick-reference specifications for the Manitou MRT2550+ telehandler, taken from the manufacturer’s spec sheet.
Performance 16 specs
| Max. capacity | 4999 kg |
|---|---|
| Max. Reach | 21.4 m |
| Outer frame turning radius | 5.23 m |
| Tilt-up angle | 13 ° |
| Tilt-down angle | 102 ° |
| Turret rotation | 360 ° |
| Tyres type | Pneumatic |
| Standard tyres | 445/65 R22,5 |
| Max. travel speed | 40 km/h |
| Drawbar pull (Laden) | 8700 daN |
| Parking brake | Automatic Negative Hand-brake |
| Service brake | Hydraulic |
| Noise at driving position (LpA) | 79.7 dB (A) |
| Environmental noise (LwA) | 108 dB (A) |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Outer turning radius (with forks) | 6.92 m |
Dimensions 15 specs
| Max. lifting height | 24.7 m |
|---|---|
| Overall width | 2.49 m |
| Overall height | 3.05 m |
| Overall cab width | 0.99 m |
| Ground clearance | 0.35 m |
| Wheelbase | 3.05 m |
| Forks length / width / section | 1200 mm x150 mm x 50 mm |
| Overall length (with forks) | 9.04 m |
| Length to face of forks | 7.84 m |
| Length of frame | 5.35 m |
| Counterweight offset (turret at 90°) | 3.18 m |
| Overall length at stabilisers | 5.19 m |
| Overall width with stabilisers extended | 5.55 m |
| Frame levelling corrector | +/- 8 ° |
| Ground clearance under front tires on stabilizers | 0.23 m |
Weight 1 spec
| Overall weight | 18900 kg |
|---|
Power / Engine 10 specs
| Engine brand | Mercedes |
|---|---|
| Engine norm | Stage IV / Tier 4 Final |
| Engine model | OM 934 LA.E4-5 |
| I.C. Engine power rating / Power (kW) | 156 Hp (115 kW) |
| Max. torque / Engine rotation (min) / Engine rotation | 675 Nm @ 1200 rpm – 1600 rpm |
| Injection engine | Injection direct |
| Engine cooling system | Water |
| Number of batteries | 2 |
| Transmission type | Hydrostatic |
| Engine oil | 14 l |
Hydraulics / Fluids 5 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow | 115 l/min |
| Hydraulic Pressure | 275 Bar |
| Hydraulic oil | 225 l |
| Fuel tank | 305 l |
