Telehandler · Manitou

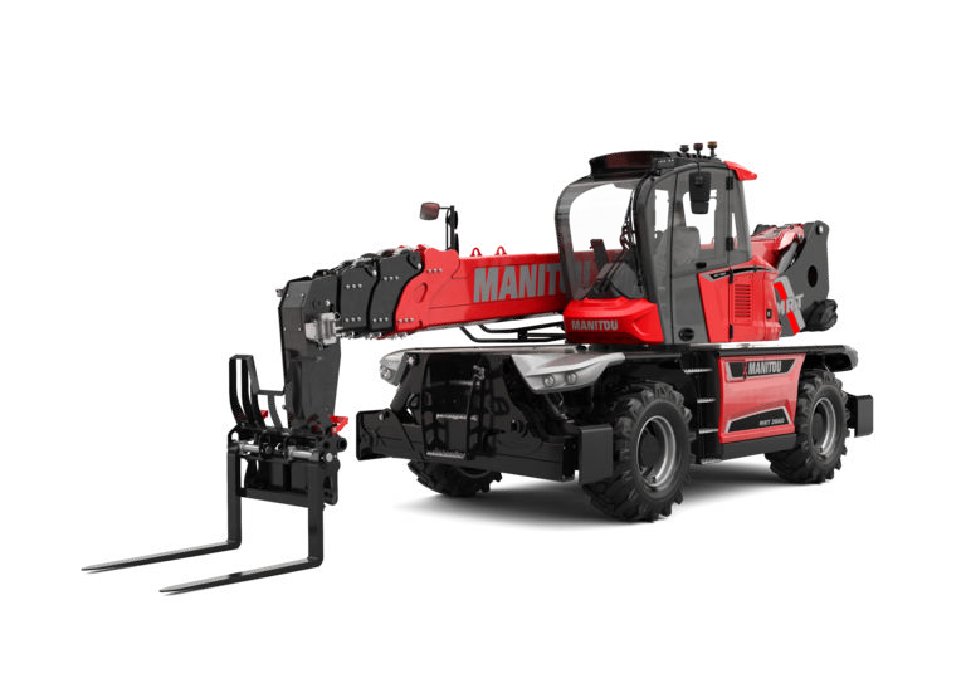

Manitou MRT2660 Specs
Quick-reference specifications for the Manitou MRT2660 telehandler, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Max. capacity | 13228 lb |
|---|---|
| Max. outreach | 71 ft 2 in |
| Tilt-up angle a | 12 ° |
| Tilt-down angle a | 112 ° |
| Turret rotation | 360 ° |
| External turning radius (over tyres) Wa | 13 ft 10 in |
| Standard tyres | 445/65 R22,5 |
| Max. travel speed | 25 mi/h |
| Parking brake | Automatic negative parking brake |
| Safety cab homologation | Cabin ROPS – FOPS Level |
Dimensions 15 specs
| Max. lifting height | 85 ft |
|---|---|
| Overall width b | 8 ft 2 in |
| Overall height h | 10 ft 2 in |
| Overall cab width b | 3 ft 2 in |
| Ground clearance m | 1 ft 2 in |
| Wheelbase y | 10 ft |
| Overall length (with forks) l | 30 ft 5 in |
| Length to face of forks l | 26 ft 6 in |
| Length of frame l | 18 ft 8 in |
| Counterweight offset (turret at 90°) a | 11 ft 6 in |
| Overall length at stabilisers l | 17 ft 5 in |
| Overall width with stabilisers extended b | 19 ft |
| Frame levelling corrector a | +/- 7 ° |
| Ground clearance under front tires on stabilizers m | 1 ft 5 in |
| Forks length / width / section l / e / s | 47 in x 4 in x 2 in |
Weight 1 spec
| Overall weight | 39683 lb |
|---|
Power / Engine 9 specs
| Engine brand | Yanmar |
|---|---|
| Engine norm | Stage V / Tier |
| Engine model | 4TN107FHT-6SMU1 |
| I.C. Engine power rating / Power (kW) | 156 Hp (115 kW) |
| Max. torque / Engine rotation (min) | 602 Nm @ 1500 rpm |
| Engine cooling system | Water cooled |
| Battery starting current (EN) | 850 A |
| Transmission type | Hydrostatic with Speedshift |
| Engine oil | 3 US gal |
Hydraulics / Fluids 5 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow | 185 l/min |
| Hydraulic Pressure | 5076 PSI |
| Hydraulic oil | 69 US gal |
| Fuel tank | 71 US gal |
