Telehandler · Manitou

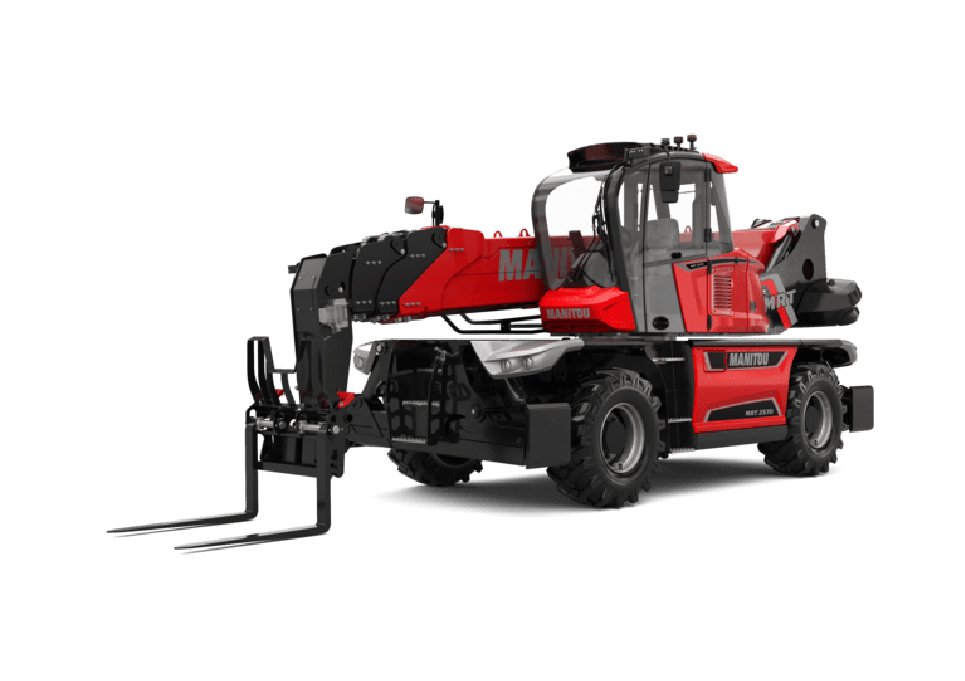

Manitou MRT2570 Specs
Quick-reference specifications for the Manitou MRT2570 telehandler, taken from the manufacturer’s spec sheet.
- Gradeability (laden / unladen)
- 32.40 % / 41.40 %
Performance 14 specs
| Max. capacity | 7000 kg |
|---|---|
| Max. outreach | 20.50 m |
| Tilt-up angle a | 12 ° |
| Tilt-down angle a | 110 ° |
| Turret rotation | 360 ° |
| Max. travel speed | 40 km/h |
| Drawbar pull (Laden) | 9200 daN |
| Parking brake | Automatic negative parking brake |
| Gradeability (laden / unladen) | 32.40 % / 41.40 % |
| Noise at driving position (LpA) | 67 dB |
| Environmental noise (LwA) | 108 dB |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Safety cab homologation | Cabin ROPS – FOPS Level |
| External turning radius (over tyres) Wa | 4.63 m |
Dimensions 16 specs
| Max. lifting height | 24.80 m |
|---|---|
| Overall length (with forks) l | 8.87 m |
| Length to face of forks l | 7.67 m |
| Overall width b | 2.50 m |
| Overall height h | 3.10 m |
| Overall cab width b | 0.96 m |
| Ground clearance m | 0.38 m |
| Wheelbase y | 3.25 m |
| Forks length / width / section l / e / s | 1200 mm x 125 mm x 60 mm |
| Standard tyres | 445/65 R22,5 |
| Length of frame l | 5.92 m |
| Counterweight offset (turret at 90°) a | 3.45 m |
| Overall length at stabilisers l | 5.62 m |
| Overall width with stabilisers extended b | 6.06 m |
| Frame levelling corrector a | +/- 7 ° |
| Ground clearance under front tires on stabilizers m | 0.45 m |
Weight 1 spec
| Overall weight | 21300 kg |
|---|
Power / Engine 9 specs
| Engine brand | Yanmar |
|---|---|
| Engine norm | Stage V / Tier |
| Engine model | 4TN107FTT-6SMU1 |
| I.C. Engine power rating / Power (kW) | 173 Hp (127 kW) |
| Max. torque / Engine rotation (min) | 805 Nm @ 1500 rpm |
| Engine cooling system | Water cooled |
| Battery starting current (EN) | 850 A |
| Transmission type | Hydrostatic with Speedshift |
| Engine oil | 13 l |
Hydraulics / Fluids 5 specs
| Hydraulic pump type | Variable displacement pump |
|---|---|
| Hydraulic flow | 185 l/min |
| Hydraulic Pressure | 350 bar |
| Hydraulic oil | 300 l |
| Fuel tank | 320 l |
