Telehandler · Manitou

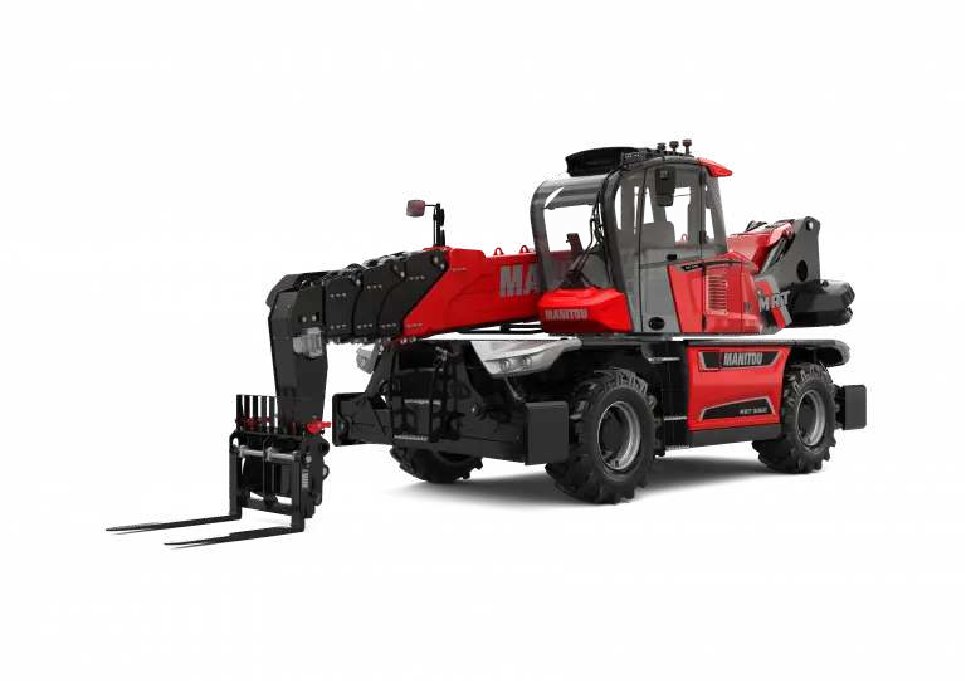

Manitou MRT3060 Specs
Quick-reference specifications for the Manitou MRT3060 telehandler, taken from the manufacturer’s spec sheet.
Performance 7 specs
| Max. capacity | 6000 kg |
|---|---|
| Max. Reach | 25.7 m |
| Tilt-up angle | 12° |
| Tilt-down angle | 112° |
| External turning radius (over tyres) | 4.37 m |
| Max. travel speed | 40 km/h |
| Standard tyres | 445/65 R22,5 |
Dimensions 15 specs
| Max. lifting height | 29.9 m |
|---|---|
| Overall width | 2.5 m |
| Overall height | 3.1 m |
| Overall cab width | 0.96 m |
| Ground clearance | 0.36 m |
| Wheelbase | 3.25 mm |
| Overall length (with forks) | 9.14 m |
| Length to face of forks | 7.94 m |
| Length of frame | 5.92 m |
| Counterweight offset (turret at 90°) | 3.45 m |
| Overall length at stabilisers | 5.62 m |
| Overall width with stabilisers extended | 6.06 m |
| Frame levelling corrector | +/- 7 ° |
| Ground clearance under front tires on stabilizers | 0.45 m |
| Forks length/width/section | 1200 mm x 100 mm x 60 mm |
Weight 1 spec
| Overall weight | 21800 kg |
|---|
Power / Engine 8 specs
| Engine brand | Yanmar |
|---|---|
| Engine model | 4TN107FTT6SMU1 |
| I.C. Engine power rating / Power (kW) | 173 Hp (127 kW) |
| Max. torque / Engine rotation (min) | 805 Nm @ 1500 rpm |
| Battery starting current (EN) | 850 A |
| Transmission type | Hydrostatic with Speedshift |
| Parking brake | Automatic negative parking brake |
| Engine oil | 13 l |
Hydraulics / Fluids 5 specs
| Hydraulic pump type | Load sensing pump |
|---|---|
| Hydraulic flow | 185 l/min |
| Hydraulic Pressure | 350 Bar |
| Hydraulic oil | 300 l |
| Fuel tank | 320 l |
