Telehandler · Manitou

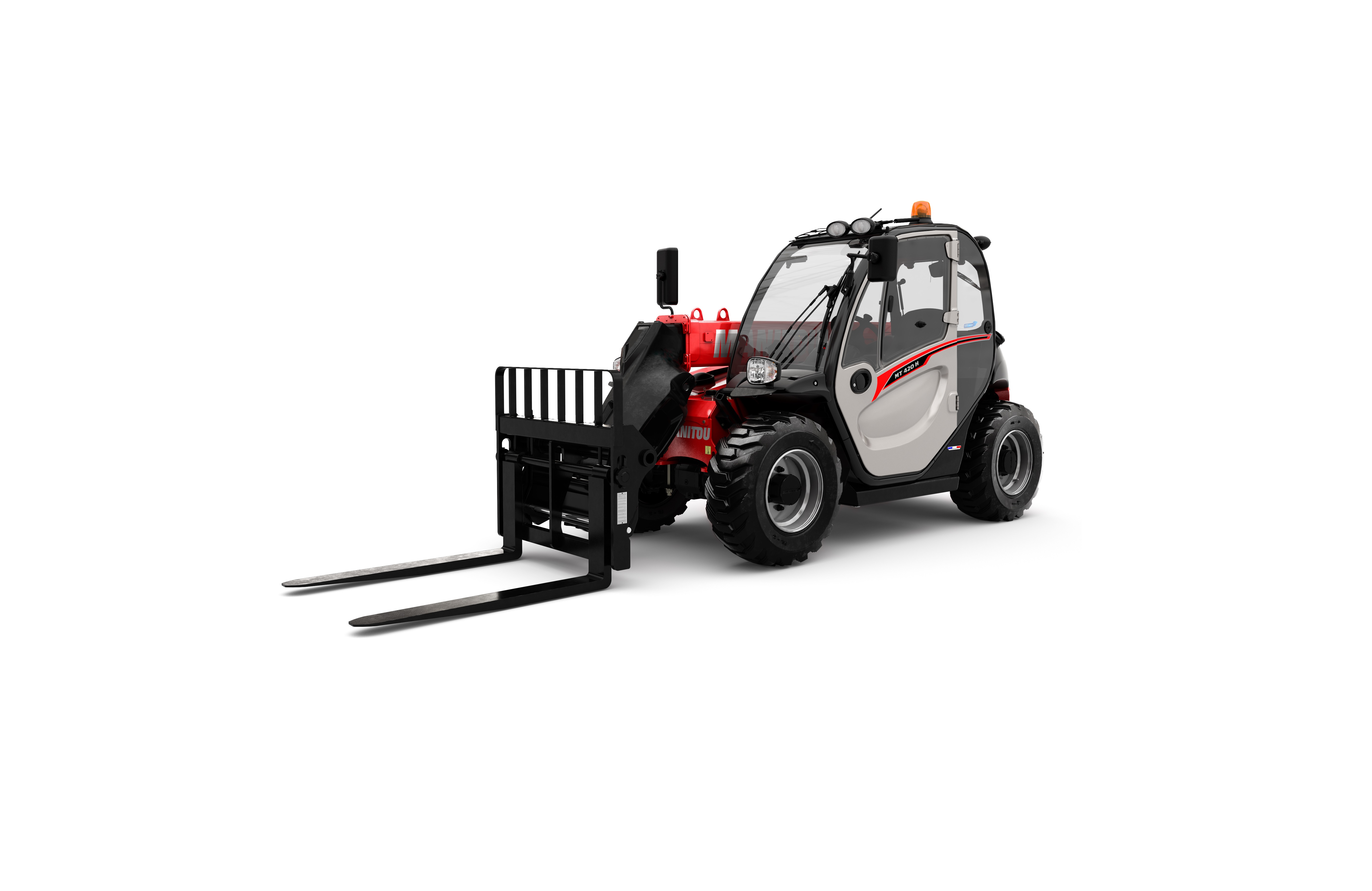

Manitou MT420H Specs
Quick-reference specifications for the Manitou MT420H telehandler, compiled from published specifications.
- Capacity at Full Forward Reach
- 1,984 lb0.9 t
Performance 7 specs
| Max Capacity | 4,409 lb (2,000 kg) |
|---|---|
| Max Lifting Height | 14 ft 3 in (4.35 m) |
| Max Outreach | 8 ft 8 in (2.65 m) |
| Capacity at Full Forward Reach | 1,984 lb (0.9 t) |
| Travel Speed | 15.5 mph (25 km/h) |
| Turning Radius | 2.98 m |
| Breakout Force with Bucket | 1886 daN |
Dimensions 9 specs
| Overall Length to Carriage | 11 ft 11 in (3.64 m) |
|---|---|
| Length to Face of Forks | 11 ft 9 in (3.58 m) |
| Overall Width | 4 ft 11 in (1.49 m) |
| Overall Height | 6 ft 6 in (1.97 m) |
| Wheelbase | 7 ft (2.13 m) |
| Ground Clearance | 9 in (0.24 m) |
| Overall Cab Width | 2 ft 7 in (0.80 m) |
| Tilt-up Angle | 12° |
| Tilt-down Angle | 116° |
Weight 2 specs
| Unladen Weight (with forks) | 9,232 lb (4,190 kg) |
|---|---|
| Overall Weight | 9,393 lb (4,260 kg) |
Power / Engine 4 specs
| Engine Power | 56 hp (42 kW) |
|---|---|
| Engine Type | 2607-CR-E5 |
| Engine Displacement | 2.615 l |
| Number of Cylinders | 4 |
Hydraulics / Fluids 5 specs
| Hydraulic Flow Rate | 77.40 l/min at 235 bar |
|---|---|
| Engine Oil Capacity | 10.20 l |
| Hydraulic Oil Capacity | 70 l |
| Hydraulic Tank Capacity | 10.20 l |
| Fuel Tank Capacity | 60 l |
