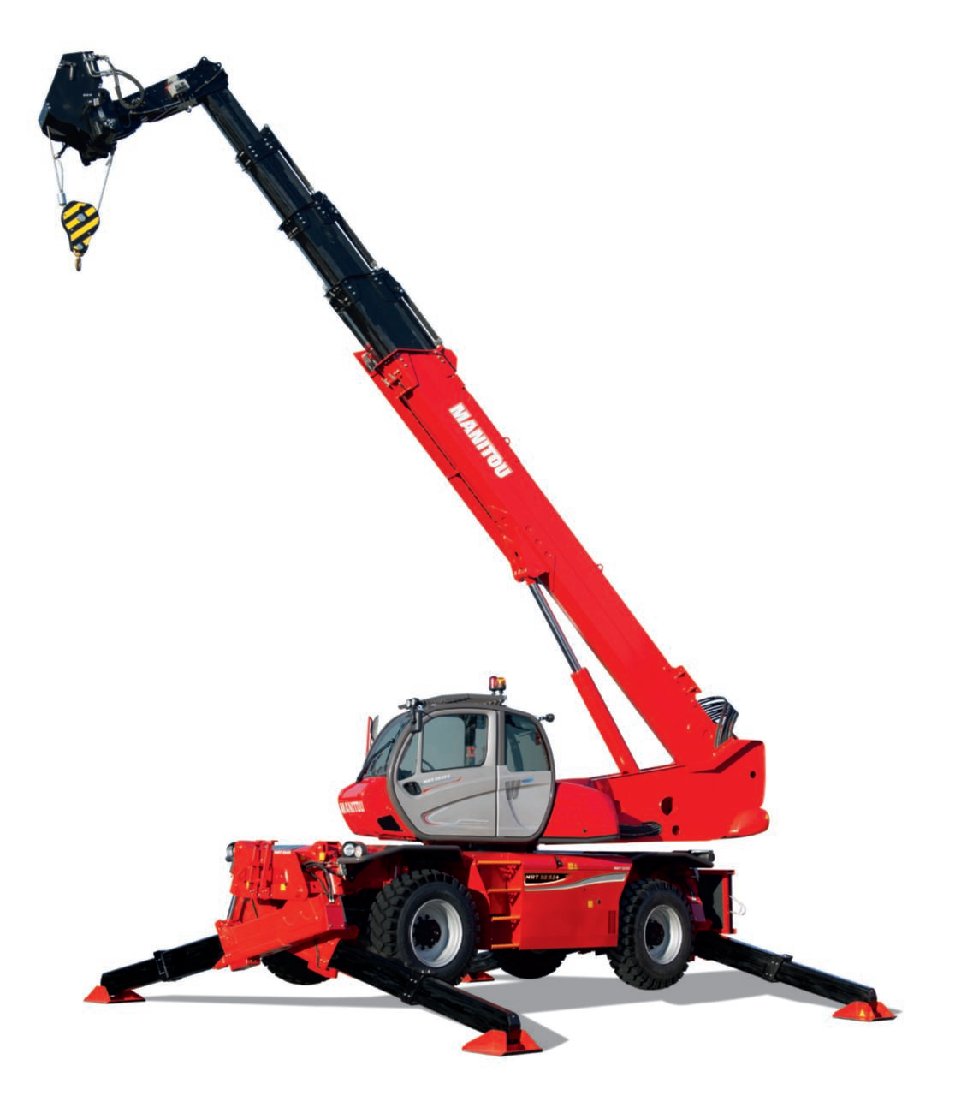

- Manitou MRT3255
Telehandler · Manitou
Manitou MRT3255 Specs
Quick-reference specifications for the Manitou MRT3255 telehandler, taken from the manufacturer’s spec sheet.
Performance 11 specs
| Max. capacity with winch (on stabilizers) | 7200 kg |
|---|---|
| Max. outreach | 27.20 m |
| Tyres | 17.5/R25 |
| Suspension/Frame levelling | Electronically controlled hydropneumatic suspension |
| Lateral frame levelling | +/-8° |
| Longitudinal frame levelling | +/-3° |
| Parking brake | Automatic Negative Parking brake |
| Turning radius (over tyres) | 4.91 m |
| Noise at driving position (LpA) | 80dB |
| Environmental noise (LwA) | 106dB |
| Vibration to whole hand/arm | <2.5 m/s |
Dimensions 7 specs
| Max. lifting height | 31.60 m |
|---|---|
| Overall width | 2.50 m |
| Overall width (stabilizers extended) | 7.10 m |
| Overall height | 3.20 m (+/-0.078 m) |
| Overall length to carriage | 8.50 m |
| Ground clearance | 0.42 m (+/-0.078 m) |
| Standard forks (length x width x thickness) | 1200x150x60mm |
Power / Engine 6 specs
| Engine | MERCEDES |
|---|---|
| Power | 231HP (170 kW) |
| Max. torque | 900 Nm/1200-1600 rpm |
| Batteries | 24 V: 2x12V-120 Ah-850A |
| Transmission | Continuous Variable Transmission |
| Fuel | 361l |
Hydraulics / Fluids 2 specs
| Load sensing Pump | 210l/min – 350 bar |
|---|---|
| Hydraulic oil | 297l |
