Telehandler · Manitou

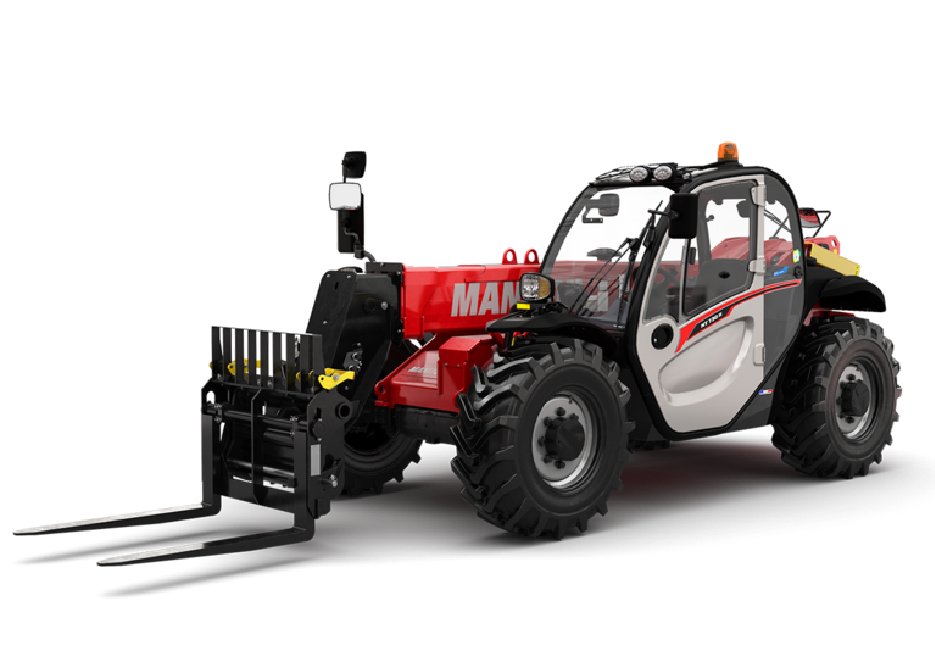

Manitou MT730H Specs
Quick-reference specifications for the Manitou MT730H telehandler, taken from the manufacturer’s spec sheet.
Performance 14 specs
| Max. capacity | 3000 kg |
|---|---|
| Maximum outreach | 4 m |
| Tilt-up angle (a4) | 11 ° |
| Tilt-down angle (a5) | 116 ° |
| External turning radius (over tyres) (Wa1) | 3.33 m |
| Lifting | 9.42 s |
| Lowering | 7.53 s |
| Drawbar pull (Laden) | 3860 daN |
| Max. travel speed | 24.90 km/h |
| Service brake | Hydraulic |
| Noise at driving position (LpA) | 74 dB |
| Noise to environment (LwA) | 103 dB |
| Vibration on hands/arms | < 2.50 m/s² |
| Cab certification | Cabin ROPS – FOPS level |
Dimensions 10 specs
| Max. lifting height | 6.90 m |
|---|---|
| Overall length to carriage (l11) | 4.67 m |
| Overall length (with forks) (l1) | 5.77 m |
| Overall width (b1) | 1.99 m |
| Overall height (h17) | 1.99 m |
| Wheelbase (y) | 2.69 m |
| Ground clearance (m4) | 0.34 m |
| Overall cab width (b4) | 0.79 m |
| Standard tires | Alliance – 380/75 R20 148A8 A580 |
| Forks length / width / section (l / e / s) | 1070 mm x 100 mm x 50 mm |
Weight 2 specs
| Unladen weight (with forks) | 5880 kg |
|---|---|
| Overall weight | 5880 kg |
Power / Engine 7 specs
| Engine brand | Kubota |
|---|---|
| Engine norm | Stage V |
| Engine model | V3307-CR-T-mthmEW05 |
| I.C. Engine power rating – Power | 75 Hp (54.60 kW) |
| Max. torque / Engine rotation | 263 Nm @ 1400 rpm |
| Transmission type | Hydrostatic |
| Engine oil | 11 l |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow / Pressure | 88 l/min-245 bar |
| Hydraulic oil | 115 l |
| Fuel tank | 90 l |
