Telehandler · Manitou

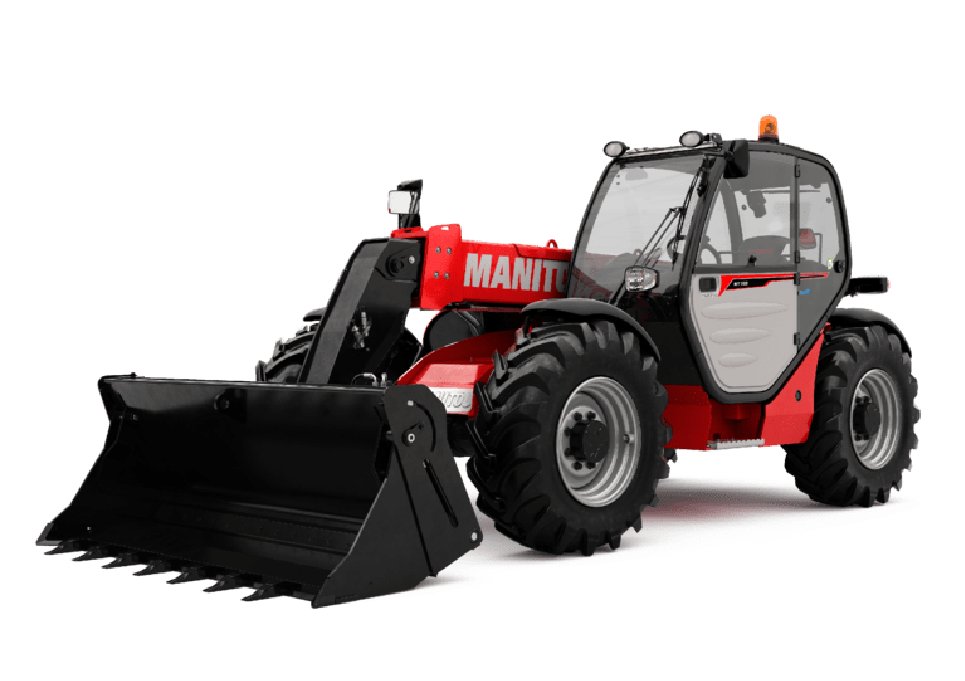

Manitou MT733 EASY Specs
Quick-reference specifications for the Manitou MT733 EASY telehandler, taken from the manufacturer’s spec sheet.
Performance 15 specs
| Max. capacity | 3300 kg |
|---|---|
| Max. outreach | 3.90 m |
| Breakout force with bucket | 5770 daN |
| Tilt-up angle | 12° |
| Tilt-down angle | 114° |
| External turning radius (over tyres) | 3.80 m |
| Lifting | 8.30 s |
| Lowering | 6 s |
| Drawbar pull (Laden) | 8360 daN |
| Max. travel speed | 24.90 km/h |
| Parking brake | Manuel |
| Axle Manufacturer | Dana |
| Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 104 dB |
| Vibration on hands/arms | < 2.50 m/s² |
Dimensions 8 specs
| Max. lifting height | 6.90 m |
|---|---|
| Overall length to carriage | 4.74 m |
| Overall width | 2.33 m |
| Overall height | 2.30 m |
| Wheelbase | 2.81 m |
| Ground clearance | 0.45 m |
| Overall cab width | 0.89 m |
| Forks length / width / section | 1200 mm x 125 mm / 45 mm |
Weight 3 specs
| Unladen weight (with forks) | 6700 kg |
|---|---|
| Tyres type | Inflatable |
| Standard tyres | Alliance 400/80-24-162A8 |
Power / Engine 7 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V / Tier 4 final |
| Engine model | TD 3.6 L |
| I.C. Engine power rating – Power (kW) | 75 Hp (55.40 kW) |
| Max. torque / Engine rotation | 340 Nm @ 1600 rpm |
| Transmission type | Torque converter |
| Engine oil | 10 l |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow / Pressure | 92.70 l/min / 260 bar |
| Hydraulic oil | 128 l |
| Fuel tank | 120 l |
