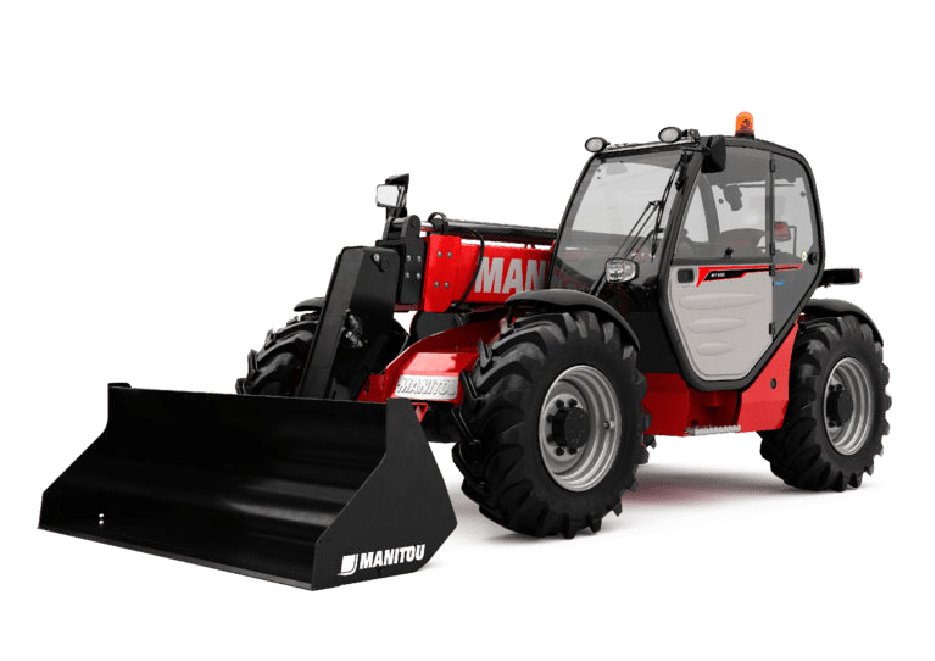

Manitou MT933 EASY Specs
Quick-reference specifications for the Manitou MT933 EASY telehandler, taken from the manufacturer’s spec sheet.
Performance 13 specs
| Max. capacity | 3300 kg |
|---|---|
| Max. outreach | 6.35 m |
| Breakout force with bucket | 5770 daN |
| Tilt-up angle | 12 ° |
| Tilt-down angle | 114 ° |
| External turning radius (over tyres) | 3.80 m |
| Lifting | 8.90 s |
| Lowering | 5.70 s |
| Drawbar pull (Laden) | 7320 daN |
| Max. travel speed | 24.90 km/h |
| Noise at driving position (LpA) | 79 dB |
| Noise to environment (LwA) | 104 dB |
| Vibration on hands/arms | < 2.50 m/s² |
Dimensions 11 specs
| Max. lifting height | 9.07 m |
|---|---|
| Overall length to carriage | 4.68 m |
| Length to face of forks | 4.68 m |
| Overall width | 2.33 m |
| Overall height | 2.30 m |
| Wheelbase | 2.81 m |
| Ground clearance | 0.45 m |
| Overall cab width | 0.89 m |
| Tyres type | Inflatable |
| Standard tyres | Alliance 400/80 – 24 – 162A8 |
| Forks length / width / section | 1200 mm x 125 mm / 45 mm |
Weight 2 specs
| Unladen weight | 7145 kg |
|---|---|
| Overall weight | 7145 kg |
Power / Engine 8 specs
| Engine brand | Deutz |
|---|---|
| Engine norm | Stage V / Tier 4 final |
| Engine model | TD 3.6 L |
| I.C. Engine power rating – Power (kW) | 75 Hp (55 kW) |
| Max. torque / Engine rotation | 340 Nm @ 1600 rpm |
| Transmission type | Torque converter |
| Parking brake | Manual |
| Engine oil | 10 l |
Hydraulics / Fluids 4 specs
| Hydraulic pump type | Gear pump |
|---|---|
| Hydraulic flow / Pressure | 92.70 l/min-260 bar |
| Hydraulic oil | 128 l |
| Fuel tank | 120 l |
