Aerial Lift · Niftylift

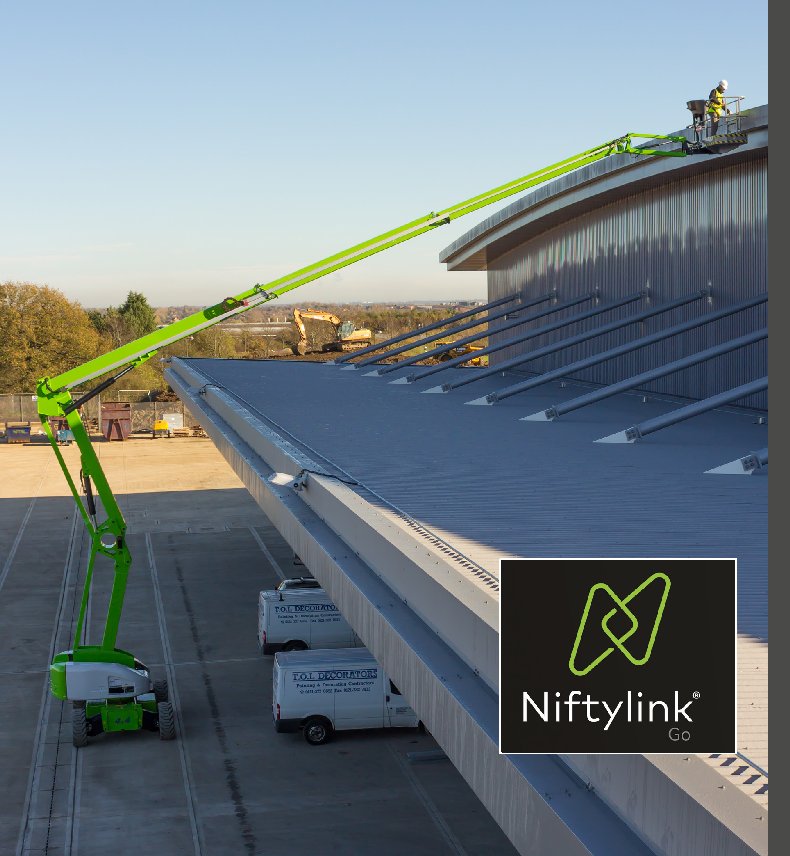

Niftylift HR28 Specs
Quick-reference specifications for the Niftylift HR28 aerial lift, compiled from published specifications.
- Platform Height
- 85 ft 4 in26 m
- Working Height
- 92 ft28 m
- Gradeability
- 40%22°
Performance 9 specs
| Working Height | 92 ft (28 m) |
|---|---|
| Working Outreach (Horizontal Reach) | 62 ft (19 m) |
| Platform Height | 85 ft 4 in (26 m) |
| Travel Speed | 3 mph (4.7 km/h) |
| Gradeability | 40% (22°) |
| Turning Radius (Outside) | 19 ft 4 in (5.9 m) |
| Fly Boom Arc | 150° |
| Cage Rotation | 180° |
| Safe Working Load (Capacity) | 620 lb (280 kg) |
Dimensions 6 specs
| Machine Length (Stowed) | 30 ft 5 in (9.28 m) |
|---|---|
| Transport Length | 23 ft 11 in (7.3 m) |
| Machine Width | 8 ft 2 in (2.49 m) |
| Machine Height (Stowed) | 8 ft 10 in (2.7 m) |
| Platform Width | 7 ft 10 in (2.4 m) |
| Platform Depth | 2 ft 11 in (0.9 m) |
Weight 1 spec
| Minimum Weight (Gross) | 31,700–32,298 lb (14,380–14,650 kg) |
|---|
Power / Engine 3 specs
| Engine Model | D1105 |
|---|---|
| Engine Power | 25 hp (18.5 kW) |
| Cylinders | 3 |
