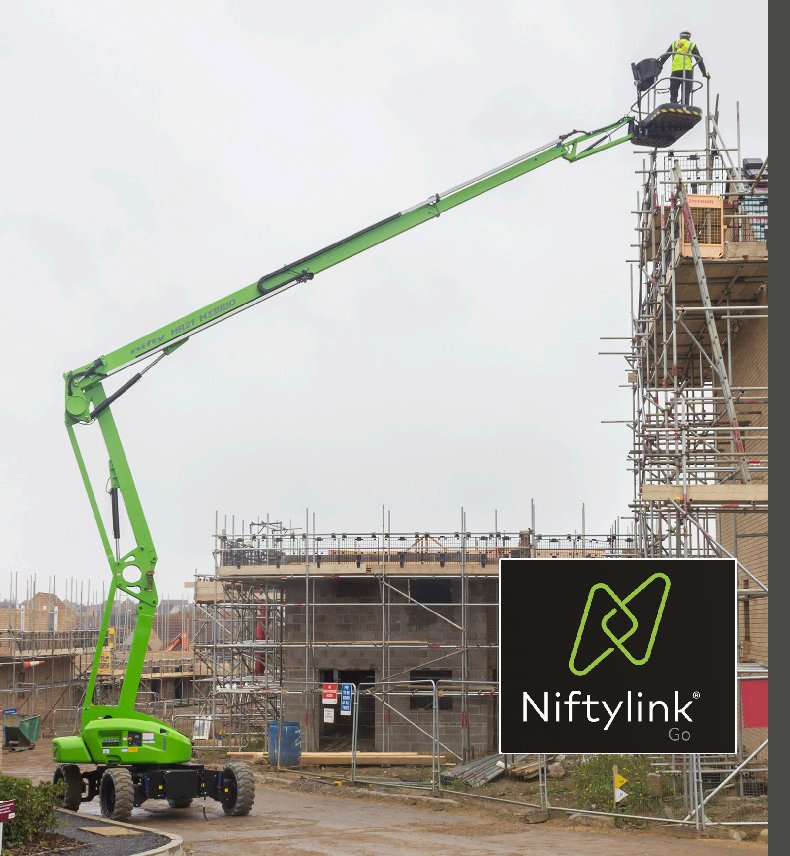

Niftylift HR21 Specs
Quick-reference specifications for the Niftylift HR21 aerial lift, compiled from published specifications.
- Platform Capacity (Persons)
- 2
- Platform Height
- 61 ft 8 in18.8 m
- Working Height
- 68 ft 6 in20.8 m
- Gradeability
- 45% / 24°
Performance 11 specs
| Working Height | 68 ft 6 in (20.8 m) |
|---|---|
| Horizontal Outreach | 42 ft 8 in (13 m) |
| Platform Height | 61 ft 8 in (18.8 m) |
| Safe Working Load (Capacity) | 550 lb (250 kg) |
| Travel Speed | 3.7 mph (6 km/h) |
| Gradeability | 45% / 24° |
| Turning Radius (Outside) | 12 ft 9 in (3.89 m) |
| Fly Boom Arc | 150° |
| Cage Rotation | 160° |
| Platform Capacity (Persons) | 2 |
| Wheelbase | 7 ft 6 in (2.30 m) |
Dimensions 6 specs
| Platform Length | 5 ft 11 in (1.8 m) |
|---|---|
| Platform Width | 2 ft 7 in (0.8 m) |
| Machine Width (F) | 7 ft 5 in (2.27 m) |
| Machine Height Stowed (D) | 7 ft 2 in (2.18 m) |
| Machine Length Stowed (J) | 21 ft 8 in (6.62 m) |
| Transport Length (H) | 17 ft 11 in (5.47 m) |
Weight 1 spec
| Minimum Weight | 14,640 lb (6,640 kg) |
|---|
Power / Engine 3 specs
| Engine Type | KDI2504 |
|---|---|
| Engine Power | 48 kW |
| Cylinders | 4 |
Hydraulics / Fluids 1 spec
| Hydraulic Pressure | 280 bar |
|---|
