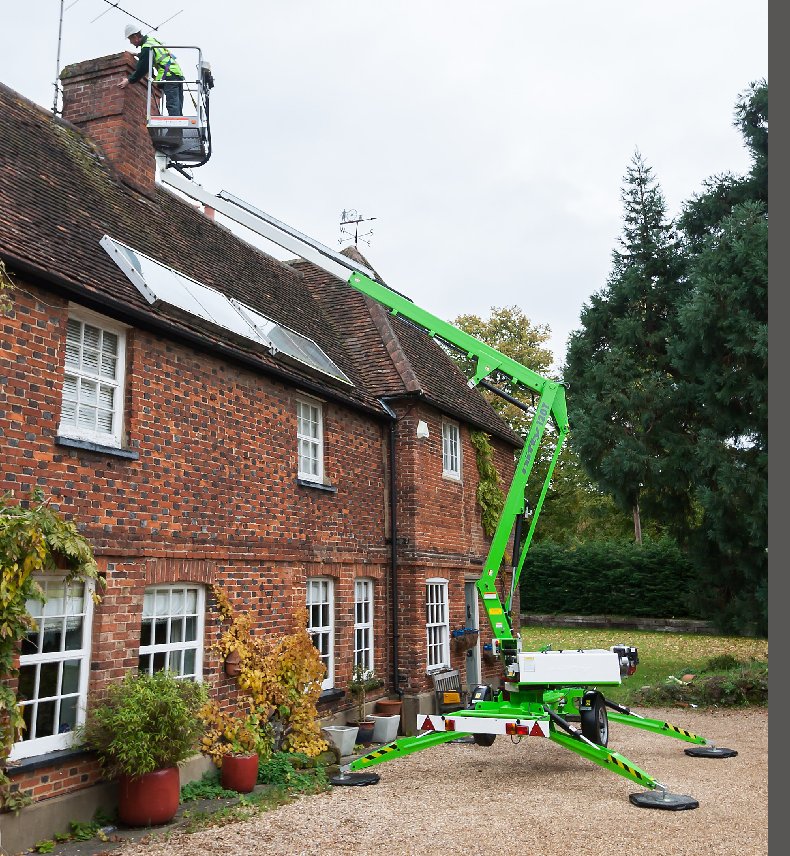

Niftylift N120T Specs
Quick-reference specifications for the Niftylift N120T aerial lift, compiled from published specifications.
- Platform Height
- 33 ft 9 in10.3 m
- Maximum Working Height
- 40 ft 4 in12.3 m
Performance 6 specs
| Maximum Working Height | 40 ft 4 in (12.3 m) |
|---|---|
| Platform Height | 33 ft 9 in (10.3 m) |
| Maximum Outreach | 19 ft 4 in (5.9 m) |
| Maximum Travel Speed | 50 mph (80 km/h) |
| Turret Rotation | 360° |
| Maximum Slope | 11% / 6° |
Dimensions 6 specs
| Machine Length (Stowed) | 14 ft 7 in (4.45 m) |
|---|---|
| Machine Width (Towing) | 4 ft 11 in (1.5 m) |
| Machine Height (Stowed) | 6 ft 3 in (1.9 m) |
| Platform Length | 44 in (1.1 m) |
| Platform Width | 25 in (0.65 m) |
| Ground Clearance | 8 in (200 mm) |
Weight 2 specs
| Gross Vehicle Weight (Maximum) | 2,888 lb (1,310 kg) |
|---|---|
| Safe Working Load | 440 lb (200 kg) |
Hydraulics / Fluids 2 specs
| Hydraulic Pressure | 2,900 psi (200 bar) |
|---|---|
| Hydraulic Fluid | ISO 32 |
