- Raymond 7500
Forklift · Raymond

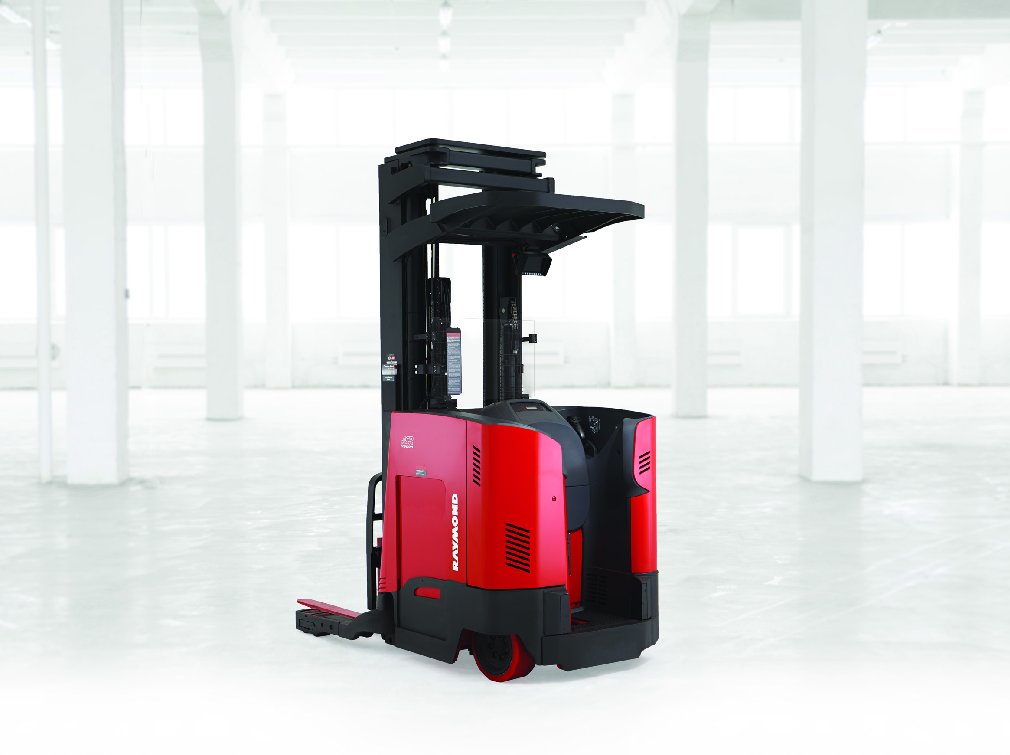

Raymond 7500 Specs
Quick-reference specifications for the Raymond 7500 forklift, from the manufacturer’s spec sheet and published specifications.
- Gradeability
- 10–13%
Performance 6 specs
| Full Free Lift | OHG Height [3] |
|---|---|
| Load Capacity | 3,500–4,500 lb (1,587.6–2,041.2 kg) |
| Travel Speed (Full Load) | 7.0 mph |
| Travel Speed (No Load) | 8 mph |
| Lifting Height Maximum | 444 in (11.28 m) |
| Gradeability | 10–13% |
Dimensions 3 specs
| Step Height | 9.25 in (235 mm) |
|---|---|
| Truck Mast Overall Width | 31 in (787 mm) |
| Turning Radius | 67 in (1702 mm) |
Power / Engine 1 spec
| Battery Voltage | 36 V DC |
|---|
