Forklift · Raymond

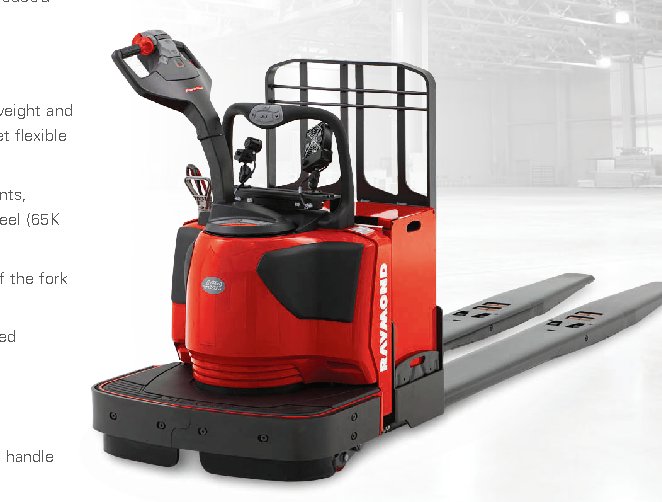

Raymond 8410 Specs

Quick-reference specifications for the Raymond 8410 forklift, from the manufacturer’s spec sheet and published specifications.

Download Spec Sheet (PDF)View PDF

Performance 4 specs

Load Capacity	6,000 lb (2,722 kg) or 8,000 lb (3,629 kg)
Loaded Travel Speed	6.2 – 6.5 mph (9.98 – 10.46 km/h)
Unloaded Travel Speed	9 mph (14.48 km/h)
Battery Voltage	24 volt

Dimensions 3 specs

Overall Length	141 inches (3,581 mm)
Overall Width	32 – 36 inches (813 – 914 mm)
Overall Height	59 inches (1,499 mm)

Power / Engine 1 spec

Battery Type	24 V Lead Acid
