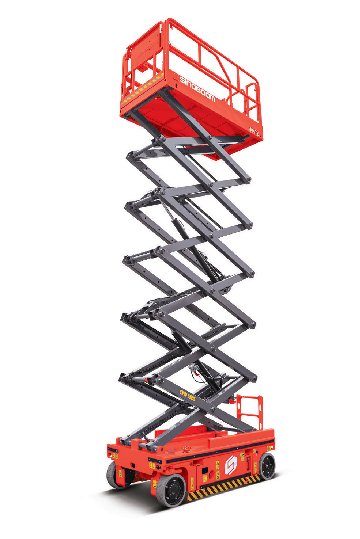

Sinoboom 4047E Specs
Quick-reference specifications for the Sinoboom 4047E aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 706 lb320 kg
- Max Working Height (Indoor/Outdoor)
- 45 ft13.7 m
- Gradeability
- 25%
Performance 11 specs
| Max Working Height (Indoor/Outdoor) | 45 ft (13.7 m) |
|---|---|
| Platform Capacity | 706 lb (320 kg) |
| Extension Platform Capacity | 265 lb (120 kg) |
| Platform Allowable Occupancy(Indoors/Outdoors) | 2 Persons / 1 Person |
| Drive Speed (Stowed) | 2.5 mph (4 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Lift Time (Unloaded) | 63 s~68 s |
| Descent Time (Unloaded) | 44 s~49 s |
| Gradeability | 25% |
| Turning Radius (Inside/Outside) | 0/7 ft 9 in (0 m/2.35 m) |
| Drive Mode | Motor, Front Wheel |
Dimensions 10 specs
| Max Platform Height (Indoor/Outdoor) | 39 ft (11.9 m) |
|---|---|
| Platform Extension | 3 ft (0.9 m) |
| Length-Stowed | 8 ft (2.46 m) |
| Width-Stowed | 3 ft 10 in (1.17 m) |
| Height-stowed (Rails Folded) | 6 ft 6 in (1.98 m) |
| Height-stowed (Rails Unfolded) | 8 ft 6 in (2.6 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground Clearance(Pothole Guard Stowed) | 4 in (0.1 m) |
| Ground Clearance(Pothole Guard Deployed) | 0.98 in (25 mm) |
| Platform Size (L×W×H) | 7 ft 7 in×3 ft 9 in×3 ft 7 in (2.3 m×1.15 m×1.1 m) |
Weight 1 spec
| Weight (Indoor/Outdoor) | 7,077 lb (3,210 kg) |
|---|
Power / Engine 4 specs
| Batteries | 24 V, 280 Ah |
|---|---|
| Power Source | 24 V DC |
| Charger Input | 100 ～ 240 V AC |
| Charger Output | 30 A |
Hydraulics / Fluids 1 spec
| Hydraulic Tank Capacity | 3.9 gal (US) (15 L) |
|---|
