- Sinoboom 4047
Aerial Lift · Sinoboom

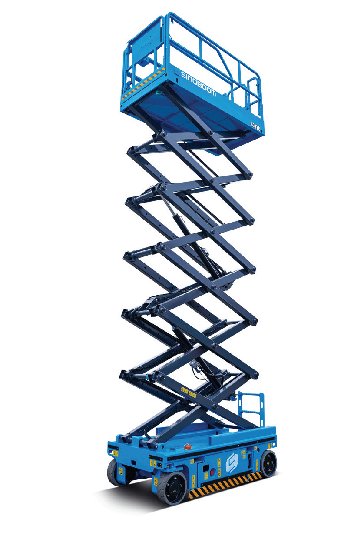

Sinoboom 4047 Specs
Quick-reference specifications for the Sinoboom 4047 aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 705.6 lb320 kg
- Weight
- 7,077 lb3,210 kg
- Gradeability
- 25%
Performance 10 specs
| Platform Extension | 3 ft (0.9 m) |
|---|---|
| Platform Capacity | 705.6 lb (320 kg) |
| Extension Platform Capacity | 265 lb (120 kg) |
| Max Platform Occupants (Indoor/Outdoor) | 2 Persons / 1 Person |
| Drive Speed (Stowed) | 0～2.5 mph (0～4 km/h) |
| Drive Speed (Raised) | 0～0.5 mph (0～0.8 km/h) |
| Lift Time (Unloaded) | 63s~68s |
| Lower Time (Unloaded) | 44s~49s |
| Gradeability | 25% |
| Turning Radius (Inside/Outside) | 0/7 ft 8.5 in (0/2.35 m) |
Dimensions 9 specs
| Length-Stowed | 8 ft (2.45 m) |
|---|---|
| Width-Stowed | 3 ft 10 in (1.17 m) |
| Height-stowed (Rails Folded) | 6 ft 6 in (1.98 m) |
| Height-stowed (Rails Unfolded) | 8 ft 6 in (2.6 m) |
| Wheelbase | 6 ft 2 in (1.88 m) |
| Ground Clearance(Pothole Guard Stowed) | 4 in (0.1 m) |
| Ground Clearance(Pothole Guard Deployed) | 0.98 in (25 mm) |
| Platform Size (L×W×H) | 7 ft 6.5 in×3 ft 9 in×3 ft 7 in (2.30 m×1.15 m×1.1 m) |
| Tire Spec/Type | 380×125 mm/solid (15×5 in) |
Weight 1 spec
| Weight | 7,077 lb (3,210 kg) |
|---|
Power / Engine 3 specs
| Power | 2WD×2WS |
|---|---|
| Power Source (V/kW) | 24 V DC,3.3 kW |
| Charger (Input/Output) | 100～240 V AC/30A |
