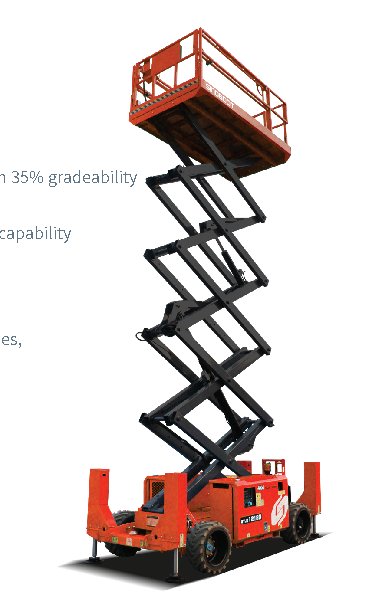

Sinoboom 3369RD Specs
Quick-reference specifications for the Sinoboom 3369RD aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 992 lb450 kg
- Max Working Height
- 38 ft 9.7 in11.8 m
Performance 12 specs
| Max Working Height | 38 ft 9.7 in (11.8 m) |
|---|---|
| Max Horizontal Reach | 4 ft 11.1 in (1.5 m) |
| Platform Capacity | 992 lb (450 kg) |
| Extension Platform Capacity | 309 lb (140 kg) |
| Drive Speed (Stowed) | 0～3.5 mph (0～5.6 km/h) |
| Drive Speed (Raised) | 0～0.3 mph (0～0.48 km/h) |
| Lift Time (Unloaded) | 42 s～52 s |
| Lower Time (Unloaded) | 40 s～50 s |
| Max Outrigger Levelling (Front-to-back) | 5.3°（ front）/4.2°（ back） |
| Max Outrigger Levelling (Side-to-side) | 11.7° |
| Turning Radius (Inside/Outside) | 6 ft 11.1 in/15 ft 1.1 in (2.11 m/4.6 m) |
| Drive × Steer | 4 WD×2 WS |
Dimensions 7 specs
| Max Platform Height | 32 ft 9.7 in (10.8 m) |
|---|---|
| Width-Stowed | 5 ft 10 in (1.78 m) |
| Height-Stowed (Rails Folded) | 6 ft 4.4 in (1.94 m) |
| Height-Stowed (Rails Unfolded) | 8 ft 4.8 in (2.56 m) |
| Wheelbase | 7 ft 5.8 in (2.28 m) |
| Ground Clearance | 8.66 in (0.22 m) |
| Tire Spec/Type | 26×12-16.5/Solid |
Power / Engine 2 specs
| Battery | 12 V，60 Ah |
|---|---|
| System Voltage | 12 VDC |
