Telehandler · Skyjack

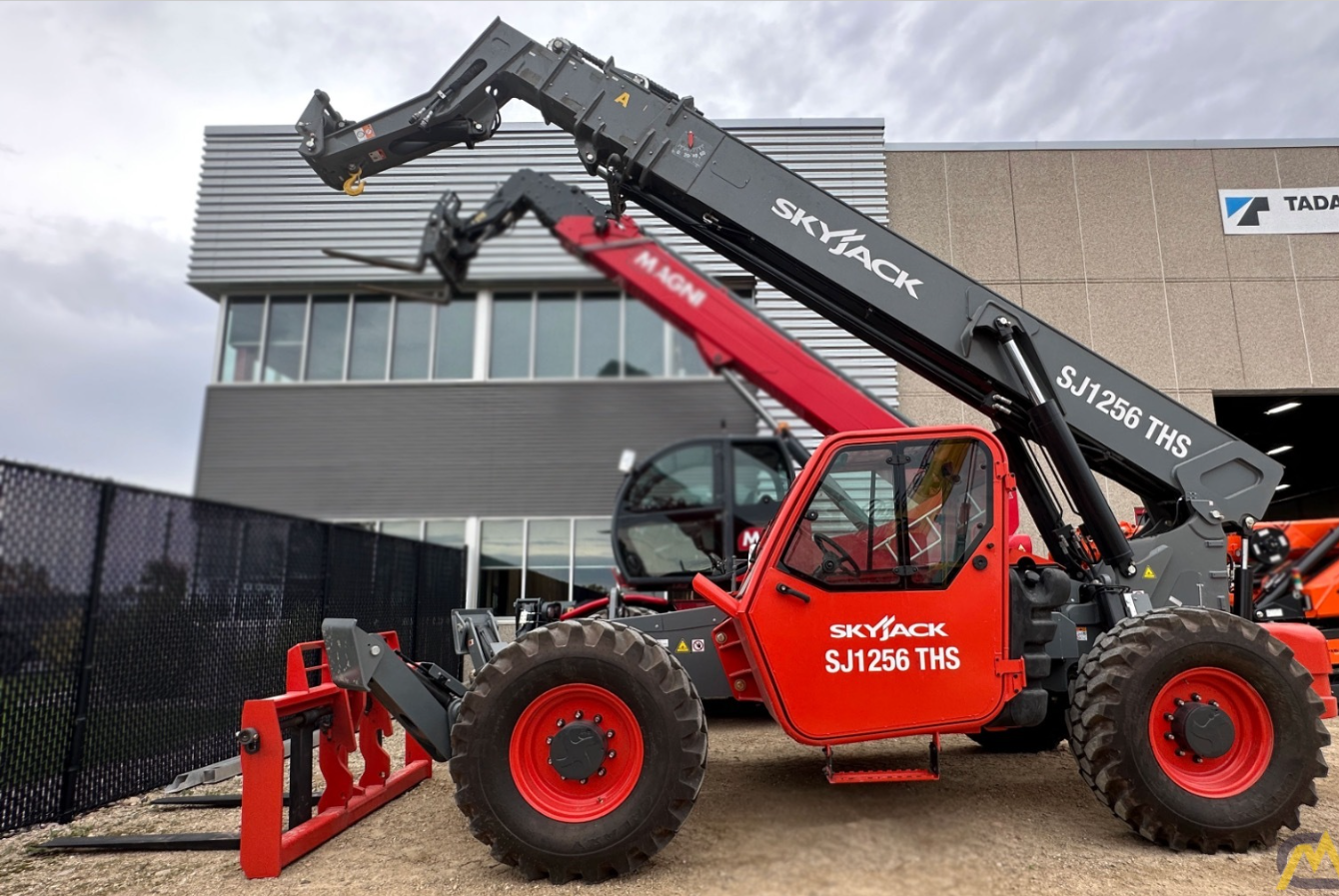

Skyjack SJ1256 THS Specs
Quick-reference specifications for the Skyjack SJ1256 THS telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 12,000 lb5,443 kg
- Maximum Lift Height
- 56 ft 3 in17.14 m
- Maximum Forward Reach
- 42 ft 6 in12.95 m
- Operating Weight
- 36,625 lb16,613 kg
Performance 11 specs
| Maximum Lift Capacity | 12,000 lb (5,443 kg) |
|---|---|
| Rated Lift Capacity @ Maximum Height | 6,000 lb (2,722 kg) |
| Rated Lift Capacity @ Max Height w. O/R | 7,000 lb (3,175 kg) |
| Maximum Forward Reach | 42 ft 6 in (12.95 m) |
| Rated Lift Capacity @ Maximum Reach | 1,000 lb (454 kg) |
| Rated Lift Capacity @ Max Reach w. O/R | 3,500 lb (1,588 kg) |
| Max Travel Speed – Forward | 15 mph (24 km/h) |
| Drawbar Pull | 22,500 lb |
| Axles | Dana |
| Tires | Foam-Filled 14 x 24 16PR Grip Lug |
| Turning Radius – Outside | 173 in (4.39 m) |
Dimensions 5 specs
| Maximum Lift Height | 56 ft 3 in (17.14 m) |
|---|---|
| Overall Length – Less Forks | 23 ft 1 in (7.03 m) |
| Overall Height – Stowed | 8 ft 6 in (2.59 m) |
| Overall Width | 8 ft 5 in (2.56 m) |
| Ground Clearance | 19 in (48.26 cm) |
Weight 1 spec
| Operating Weight | 36,625 lb (16,613 kg) |
|---|
Power / Engine 2 specs
| Transmission | Dana Powershift, 3 Speeds F/R |
|---|---|
| Engine | 107 hp / 320 lb-ft Deutz TCD (3.6 L T4F) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 35 gal (132 L) |
|---|---|
| Hydraulic Reservoir | 43.85 gal (166 L) |
