Telehandler · Skyjack

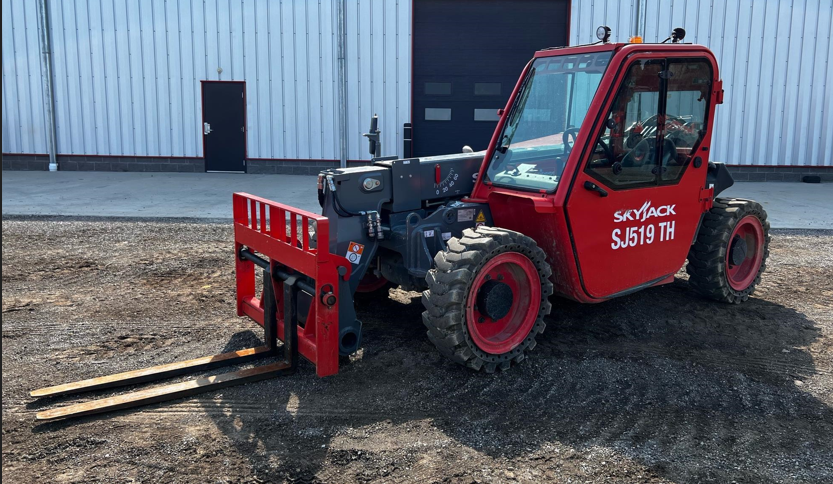

Skyjack SJ519TH Specs
Quick-reference specifications for the Skyjack SJ519TH telehandler, taken from the manufacturer’s spec sheet.
- Maximum Lift Capacity
- 5,500 lb2,495 kg
- Maximum Lift Height
- 19 ft 1 in5.82 m
- Maximum Forward Reach
- 11 ft 1 in3.38 m
- Operating Weight
- 10,500 lb4,763 kg
Performance 9 specs
| Maximum Lift Capacity | 5,500 lb (2,495 kg) |
|---|---|
| Rated Lift Capacity @ Maximum Height | 4,400 lb (1,996 kg) |
| Maximum Forward Reach | 11 ft 1 in (3.38 m) |
| Rated Lift Capacity @ Maximum Reach | 2,000 lb (907 kg) |
| Turning Radius – Outside | 125 in (3.17 m) |
| Max Travel Speed – Forward | 15 mph (24 km/h) |
| Drawbar Pull | 8,700 lb |
| Breakout Force | 10,600 lb |
| Tires | Pneumatic 12 x 16.5 12PR Grip Lug |
Dimensions 5 specs
| Maximum Lift Height | 19 ft 1 in (5.82 m) |
|---|---|
| Overall Length – Less Forks | 13 ft 5 in (4.09 m) |
| Overall Height – Stowed | 6 ft 4 in (1.93 m) |
| Overall Width | 5 ft 11.5 in (1.81 m) |
| Ground Clearance | 11 in (27.94 cm) |
Weight 1 spec
| Operating Weight | 10,500 lb (4,763 kg) |
|---|
Power / Engine 3 specs
| Engine | 74 hp/184 lb-ft Deutz TCD (2.2 L T4F) |
|---|---|
| Transmission | Hydrostatic, 1 F/R |
| Axles | Dana |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 15.1 gallon (57 L) |
|---|---|
| Hydraulic Reservoir | 18.7 gallon (70 L) |
