Scissor Lift · Skyjack

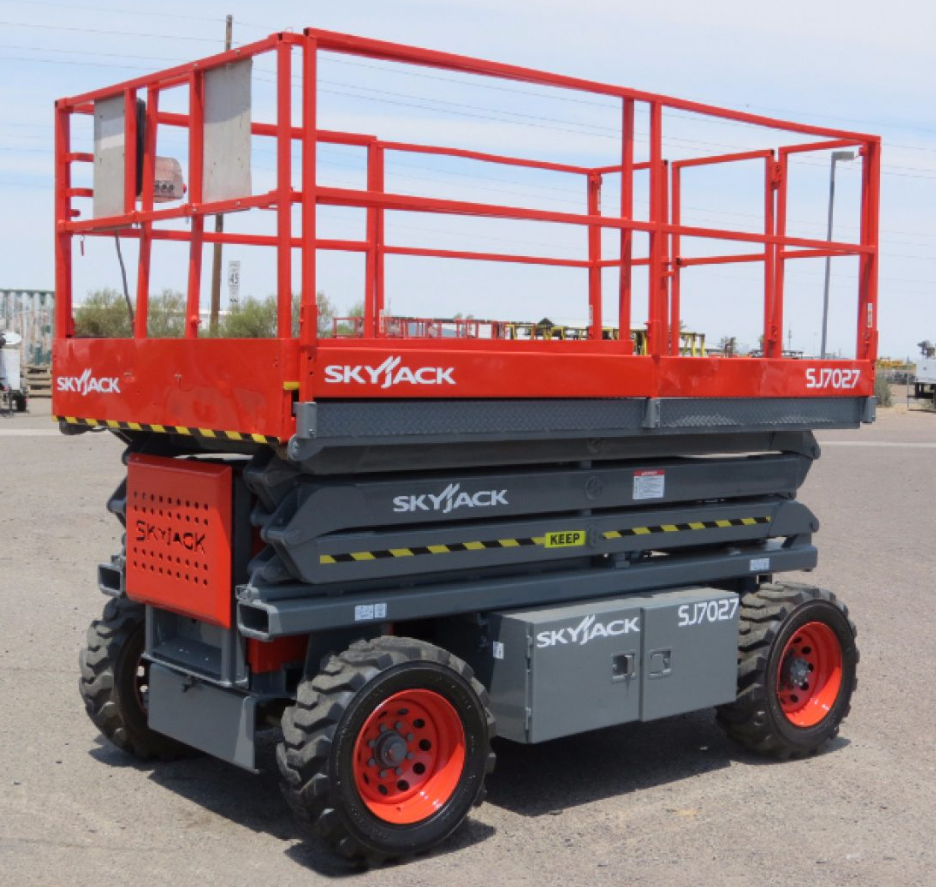

Skyjack SJ7027FRT Specs
Quick-reference specifications for the Skyjack SJ7027FRT scissor lift, compiled from published specifications.
- Lift Capacity
- 1,500 lb680 kg
- Platform Height
- 27 ft8.2 m
- Working Height
- 33 ft10.1 m
- Operating Weight
- 7,600-8,600 lb3,450-3,606 kg
Performance 6 specs
| Working Height | 33 ft (10.1 m) |
|---|---|
| Platform Height | 27 ft (8.2 m) |
| Lift Capacity | 1,500 lb (680 kg) |
| Max Speed | 3 mph (4.83 km/h) |
| Gradeability | 35% |
| Drive System | 4WD |
Dimensions 7 specs
| Platform Length | 9.38 ft (2.86 m) |
|---|---|
| Platform Width | 5.41 ft (1.65 m) |
| Overall Width | 5 ft 10 in (1.78 m) |
| Overall Length | 9 ft 7 in (3.02 m) |
| Height Stowed | 8 ft 11 in (2.74 m) |
| Platform Extension | 4.92 ft (1.5 m) |
| Turning Radius | 17.4 ft |
Weight 2 specs
| Operating Weight | 7,600-8,600 lb (3,450-3,606 kg) |
|---|---|
| Persons on Platform | 2 |
Power / Engine 2 specs
| Horsepower | 28 hp |
|---|---|
| Power Output (Diesel) | 17.1 kW |
Hydraulics / Fluids 1 spec
| Lift Time | 43 sec |
|---|
