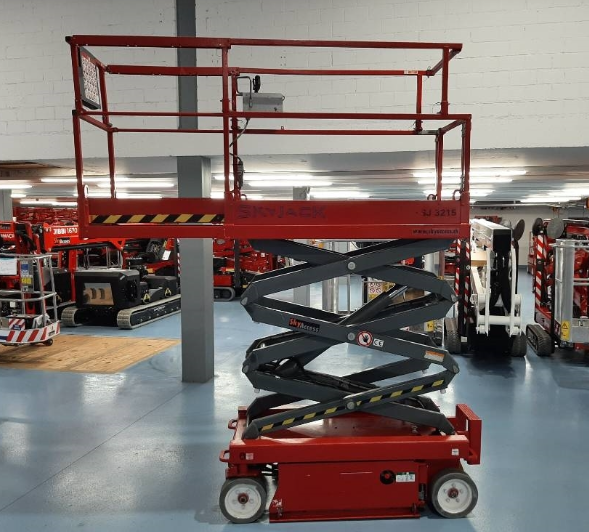

Skyjack SJIII 3215 Spec Sheet
Quick-reference specifications for the Skyjack SJIII 3215. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 15’ (4.57 m)
D Overall Width: 32” (0.81 m)
F Stowed Height (Rails Up): 74” (1.88 m)
Capacity (Overall): 600 lbs (272 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| B Raised Platform Height | 15’ (4.57 m) |
|---|---|
| C Lowered Platform Height | 34.5” (0.88 m) |
| Gradeability | 30% |
| Turning Radius (Outside) | 66” (1.68 m) |
| Capacity (Overall) | 600 lbs (272 kg) |
| Distributed Capacity (Main Platform) | 350 lbs (159 kg) |
| Distributed Capacity (Extension Deck) | 250 lbs (113 kg) |
Dimensions
| A Work Height | 21’ (6.40 m) |
|---|---|
| D Overall Width | 32” (0.81 m) |
| E Overall Length | 70” (1.78 m) |
| F Stowed Height (Rails Up) | 74” (1.88 m) |
| G Stowed Height (Rails Down) OPT | 60.1” (1.53 m) |
| H Platform Width (Inside Dimension) | 26” (0.66 m) |
| I Platform Length (Inside Dimension) | 64” (1.63 m) |
| Ground Clearance (Stowed) | 2.375” (6.03 cm) |
| Ground Clearance (Raised) | 0.7” (1.78 cm) |
| Wheelbase | 55” (1.40 m) |
Weights & Electrical
| Weight | 2,400 lbs (1,089 kg) |
|---|---|
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
|---|---|
| Drive Speed (Raised) | 0.7 mph (1.1 km/h) |
| Tire Size 12 x | 4 x 8 |
Hydraulics & Capacities
| Local Floor Load (With Rated Load) | 110 psi (759 kPa) |
|---|
