Boom Lift · Skyjack

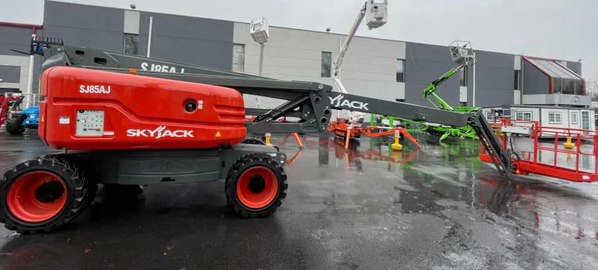

Skyjack SJ85AJ Specs
Quick-reference specifications for the Skyjack SJ85AJ boom lift, taken from the manufacturer’s spec sheet.
- Capacity
- 500 / 750 lb227 / 340 kg
- Platform Height
- 85 ft25.91 m
- Work Height
- 91 ft27.74 m
- Weight
- 36,300 lb16,465 kg
Performance 10 specs
| Work Height | 91 ft (27.74 m) |
|---|---|
| Horizontal Reach | 56 ft (17.07 m) |
| Rotation | 360° |
| Platform Rotation | 170° |
| Gradeability | 45% |
| Turning Radius (Inside) | 10 ft (3.05 m) |
| Turning Radius (Outside) | 20 ft 5 in (6.22 m) |
| Axle Oscillation | 4 in (10.16 cm) |
| Drive Speed (High speed) | 3 mph (4.8 km/h) |
| Capacity | 500 / 750 lb (227 / 340 kg) |
Dimensions 13 specs
| Platform Height | 85 ft (25.91 m) |
|---|---|
| Up and Over Height | 34 ft (10.36 m) |
| Platform Size | 36 in x 96 in (0.91 x 2.4 m) |
| Stowed Width | 8 ft 2 in (2.49 m) |
| Tailswing | 2 ft 10 in (0.91 m) |
| Stowed Height | 8 ft 9 in (2.67 m) |
| Transportation Height | 8 ft 9 in (2.67 m) |
| Stowed Length | 38 ft 2 in (11.63 m) |
| Transportation Length | 32 ft 11 in (10.03 m) |
| Wheelbase | 9 ft 4 in (2.84 m) |
| Ground Clearance | 13 ft 25 in (0.34 m) |
| Jib Length | 5 ft 6 in (1.68 m) |
| Tire Size | 18-625 |
Weight 1 spec
| Weight | 36,300 lb (16,465 kg) |
|---|
Power / Engine 1 spec
| Diesel Engine | 74 HP |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 30.4 gal (115 L) |
|---|---|
| Hydraulic Reservoir | 45 gal (170 L) |
