Equipment Spec Sheet

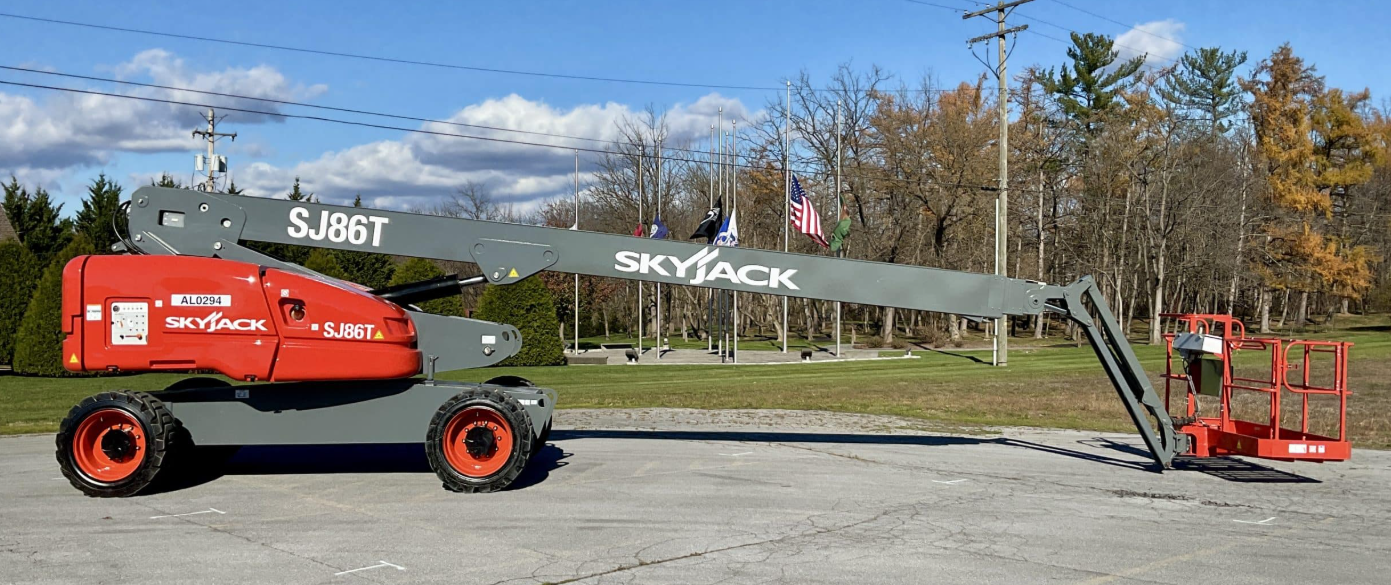

Skyjack SJ86T Spec Sheet
Quick-reference specifications for the Skyjack SJ86T. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Height: 26.21 m
D Stowed Height: 3.00 m
Capacity 227 kg /: 341 kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height | 26.21 m |
|---|---|
| C Tailswing | 1.42 m |
| Jib Length | 1.68 m |
| Gradeability | 45% |
| Turning Radius (Inside) | 6.22 m |
| Turning Radius (Outside) | 7.19 m |
| Capacity 227 kg / | 341 kg |
Dimensions
| Work Height | 28.21 m |
|---|---|
| A Platform Size 0.91 x | 2.44 m |
| B Stowed Width | 2.49 m |
| D Stowed Height | 3.00 m |
| E Stowed Length | 12.95 m |
| F Wheelbase | 3.35 m |
| G Ground Clearance | 0.41 m |
| SJ86T Work Height | 21.34 |
Weights & Electrical
| Horizontal Reach | 23.42 m |
|---|---|
| Weight | 17,550 kg |
| Skyjack Australia Pty Ltd Unit 1, | 35 Honeycomb Drive |
| jcranmer@skyjack.com AU/NZ/10/2017 |
Powertrain & Systems
| Axle Oscillation | 10.16 cm |
|---|---|
| Drive Speed (High speed) | 4.8 km/h |
| Tyre Size | 18-625 |
| Diesel Engine Deutz D2011L04i – | 65 HP (48 KW) |
Hydraulics & Capacities
| Fuel Tank Capacity | 170 L |
|---|---|
| Hydraulic Reservoir | 227 L |
