Scissor Lift · Skyjack

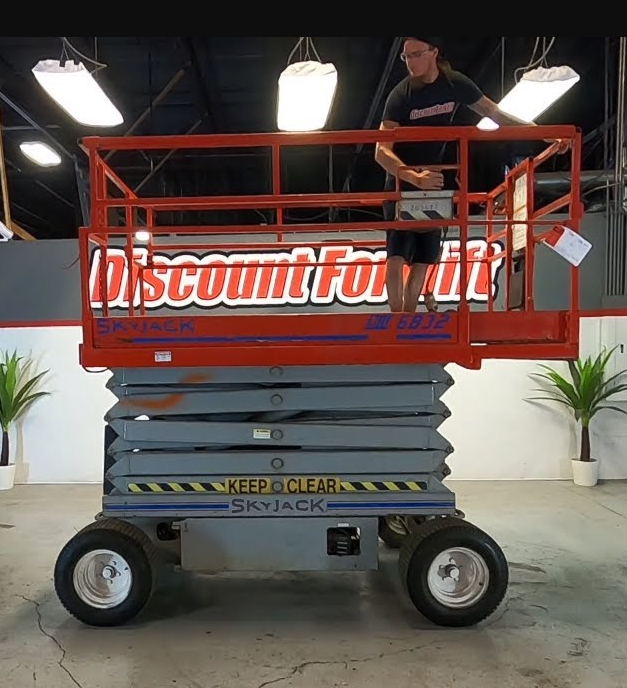

Skyjack SJIII 6832E Specs
Quick-reference specifications for the Skyjack SJIII 6832E scissor lift, compiled from published specifications.
- Capacity (Overall)
- 1,000 lb454 kg
- Elevated Working Height
- 38.0 ft11.6 m
- Operating Weight
- 6,160 lb2,787 kg
- Gradeability
- 25%
Performance 12 specs
| Elevated Working Height | 38.0 ft (11.6 m) |
|---|---|
| Elevated Platform Height | 32.0 ft (9.75 m) |
| Stowed Platform Height | 55.3 in (1.40 m) |
| Stowed Fixed Railing Height | 99.0 in (2.51 m) |
| Lift Time (Rated Load) | 59 sec |
| Lower Time (Rated Load) | 50 sec |
| Normal Drive Speed (Max) | 2.0 mph |
| Elevated Low Drive Speed (Max) | 0.67 mph |
| Gradeability | 25% |
| Turning Radius (Inside) | 76 in (1.93 m) |
| Turning Radius (Outside) | 164 in (4.17 m) |
| Capacity (Overall) | 1,000 lb (454 kg) |
Dimensions 4 specs
| Overall Width | 68.0 in (1.73 m) |
|---|---|
| Overall Length | 99.25 in (2.52 m) |
| Platform Size (Inside) | 60 in x 81 in (1.53 m x 2.05 m) |
| Deck Extension | 3.0 ft (0.91 m) |
Weight 1 spec
| Operating Weight | 6,160 lb (2,787 kg) |
|---|
Power / Engine 1 spec
| Power Source | DC Electric Motor (48 V) |
|---|
Hydraulics / Fluids 1 spec
| Tire Type | Foam Filled, 23 x 10.5 x 12 |
|---|
