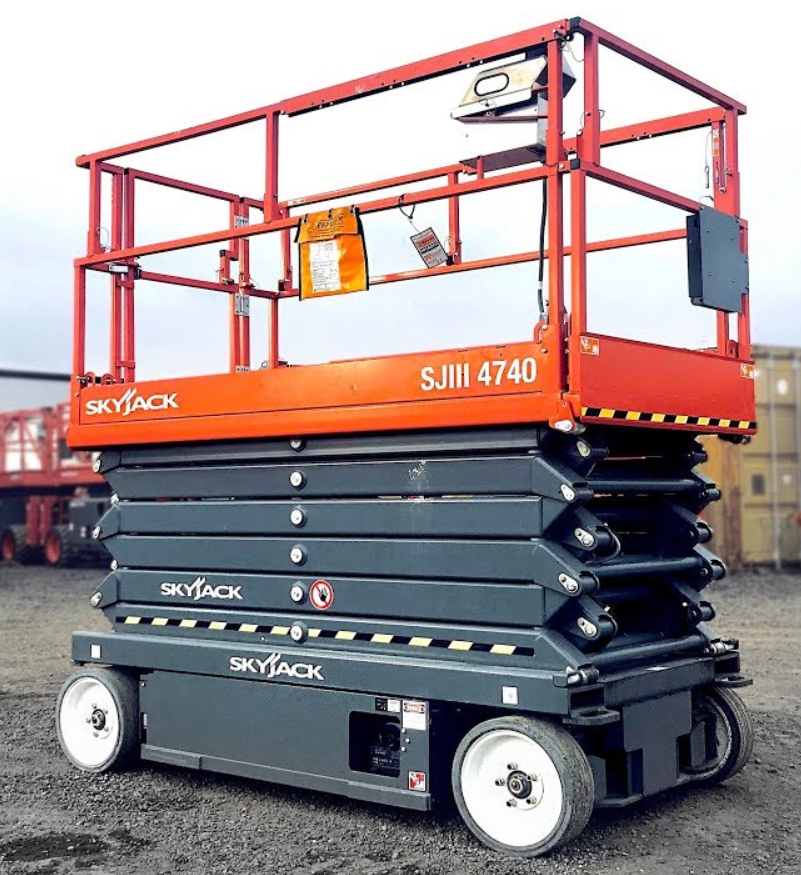

Skyjack SJIII 4740 Spec Sheet
Quick-reference specifications for the Skyjack SJIII 4740. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 39’ 5” (12.0m)
D Overall Width: 47″ (1.19 m)
F Stowed Height (Rails Up): 97.9” (2.49 m)
Capacity (Overall): 500 lbs (227 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| B Raised Platform Height | 39’ 5” (12.0m) |
|---|---|
| C Lowered Platform Height | 54″ (1.37 m) |
| Gradeability | 25% |
| Turning Radius (Inside) | 21″ (0.54 m) |
| Turning Radius (Outside) | 101″ (2.58 m) |
| Capacity (Overall) | 500 lbs (227 kg) |
Dimensions
| A Work Height | 45’ 5” (13.8m) |
|---|---|
| D Overall Width | 47″ (1.19 m) |
| E Overall Length (Platform Retracted) | 94.5″ (2.40 m) |
| F Stowed Height (Rails Up) | 97.9” (2.49 m) |
| G Stowed Height (Rails Down) | 78.2” (1.99 m) |
| H Platform Width (Inside Railing) | 42″ (1.06 m) |
| I Platform Inside Length (Retracted) | 86″ (2.19 m) |
| Ground Clearance (Pothole Raised) | 3.19″ (8.1 cm) |
| Ground Clearance (Pothole Deployed) | 0.75″ (1.9 cm) |
| Wheelbase | 73″ (1.85 m) |
Weights & Electrical
| Weight | 7480 lbs (3393 kg) |
|---|---|
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Drive Speed (Stowed) | 2.0 mph (3.2 km/h) |
|---|---|
| Drive Speed (Raised) | 0.62 mph (1.0 km/h) |
| Tire Size 16 x 5 x | 12 |
