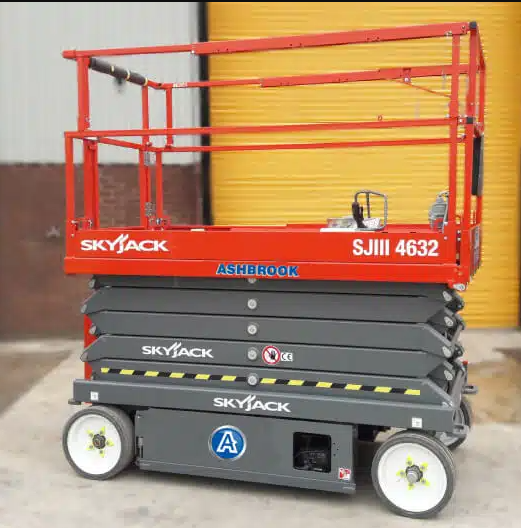

Skyjack SJIII 4632 Spec Sheet
Quick-reference specifications for the Skyjack SJIII 4632. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B Raised Platform Height: 26’ (7.92 m)
D Overall Width: 46” (1.17 m)
F Stowed Height (Rails Up): 84.5” (2.15 m)
Capacity (Overall): 1,000 lbs (454 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| B Raised Platform Height | 26’ (7.92 m) |
|---|---|
| C Lowered Platform Height | 45” (1.14 m) |
| Gradeability | 30% |
| Turning Radius (Inside) | 47.5” (1.21 m) |
| Turning Radius (Outside) | 93.5” (2.37 m) |
| Capacity (Overall) | 1,000 lbs (454 kg) |
| Distributed Capacity (Main Platform) | 700 lbs (318 kg) |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) |
Dimensions
| A Work Height | 32’ (9.75 m) |
|---|---|
| D Overall Width | 46” (1.17 m) |
| E Overall Length | 91” (2.31 m) |
| F Stowed Height (Rails Up) | 84.5” (2.15 m) |
| G Stowed Height (Rails Down) | 70.5” (1.79 m) |
| H Platform Width (Inside Dimension) | 42” (1.07 m) |
| I Platform Length (Inside Dimension) | 84” (2.13 m) |
| Ground Clearance (Stowed) | 3.5” (8.89 cm) |
| Ground Clearance (Raised) | 0.75” (1.91 cm) |
| Wheelbase | 69” (1.75 m) |
Weights & Electrical
| Weight | 4,700 lbs (2,132 kg) |
|---|---|
| Skyjack Head Office 55 Campbell Rd. Guelph, ON Canada N1H | 1B9 |
| skyjack@skyjack.com |
Powertrain & Systems
| Drive Speed (Stowed) | 2 mph (3.2 km/h) |
|---|---|
| Drive Speed (Raised) | 0.6 mph (1 km/h) |
| Tire Size 16 x 5 x | 12 |
Hydraulics & Capacities
| Local Floor Load (With Rated Load) | 235 psi (1620 kPa) |
|---|
