12K Telehandler · Skytrak

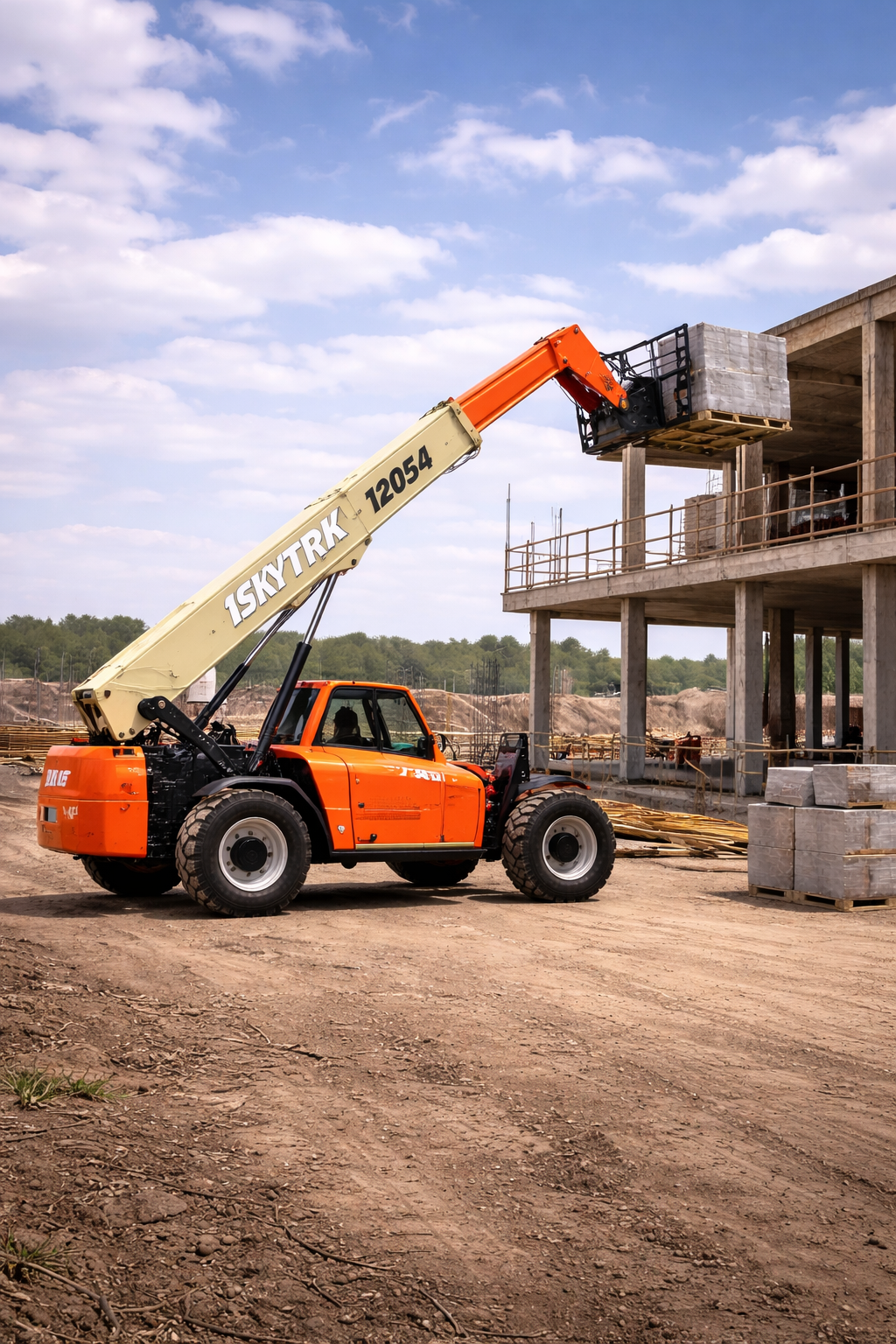

Skytrak 12054 Specs
Quick-reference specifications for the Skytrak 12054 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 12,000 lb5,443 kg
- Maximum Lift Height
- 53 ft 2 in16.2 m
- Maximum Forward Reach
- 38 ft 10 in11.8 m
- Operating Weight
- 30,357 lb13,770 kg
Performance 10 specs
| Rated Capacity | 12,000 lb (5,443 kg) |
|---|---|
| Maximum Forward Reach | 38 ft 10 in (11.8 m) |
| Load at Max Reach | 3,500 lb (1,588 kg) |
| Frame Leveling | 10° |
| Lift Speed (boom retracted) – Down | 16 sec |
| Boom Speed – Extended | 16 sec |
| Boom Speed – Retracted | 15.5 sec |
| Top Travel Speed (4-Speed) | 18.2 mph (29.3 kph) |
| Drawbar Pull (loaded) | 30,000 lb (133.5 kN) |
| Outside Turning Radius | 166 in (4.21 m) |
Dimensions 2 specs
| Maximum Lift Height | 53 ft 2 in (16.2 m) |
|---|---|
| Load at Max Height | 5,000 lb (2,268 kg) |
Weight 1 spec
| Operating Weight | 30,357 lb (13,770 kg) |
|---|
Power / Engine 5 specs
| Make and Model | Cummins QSF3.8L Tier 4 F |
|---|---|
| No. of Cylinders | 4 |
| Displacement | 232 cu in (3.8 L) |
| Gross Power Basic | 110 hp (82 kW) |
| Maximum Torque @ 1500 rpm | 348 lb-ft (472 Nm) |
Hydraulics / Fluids 2 specs
| Hydraulic System-Implement – Capacity | 50 gal (189 L) |
|---|---|
| Fuel Tank Capacity | 35 gal (132.5 L) |
