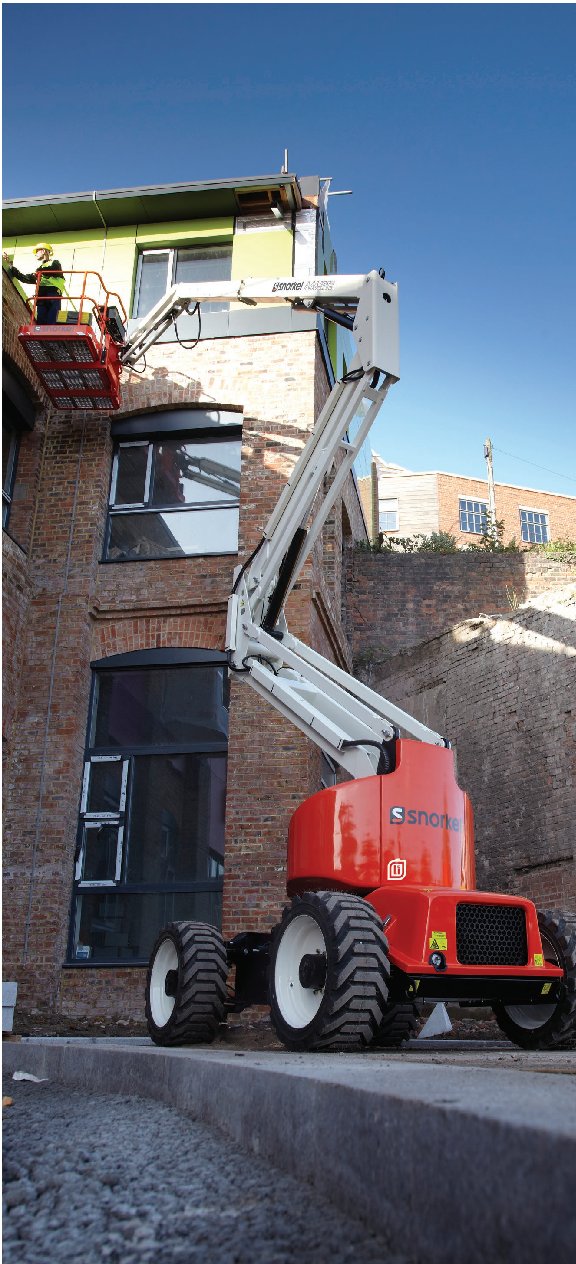

Snorkel A46JRTE Specs
Quick-reference specifications for the Snorkel A46JRTE aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 227 kg
- Max. working height
- 16.3 m
- Weight
- 7,540 kg
- Gradeability
- 45%
Performance 16 specs
| Max. working height | 16.3 m |
|---|---|
| Max. working outreach | 7.35 m |
| Clearance height at max. outreach | 7.67 m |
| Platform capacity (SWL) | 227 kg |
| Max. wind speed | 12.5 m/s |
| Max. drive speed (stowed) | 6.4 km/h |
| Max. drive speed (elevated) | 1.3 km/h |
| Jib arc | 140º |
| Platform rotation | 160º |
| Turret rotation (non-continuous) | 360º |
| Raise/lower time | 101/98 sec |
| Gradeability | 45% |
| Inside turning radius | 0.8 m |
| Outside turning radius | 3.17 m |
| Tires | High grip, foam-filled 355/55D625NHS 17.5 |
| Drive system | 4-wheel drive |
Dimensions 9 specs
| Max. platform height | 14.3 m |
|---|---|
| Platform size | 1.0 m x 1.83 m |
| Chassis width (A) | 2.1 m |
| Overall length (B) | 5.7 m |
| Stowed height (C) | 2.16 m |
| Ground clearance | 330 mm |
| Max. drive height | 14.3 m |
| Jib length | 1.5 m |
| Tailswing | 0 m |
Weight 1 spec
| Weight | 7,540 kg |
|---|
