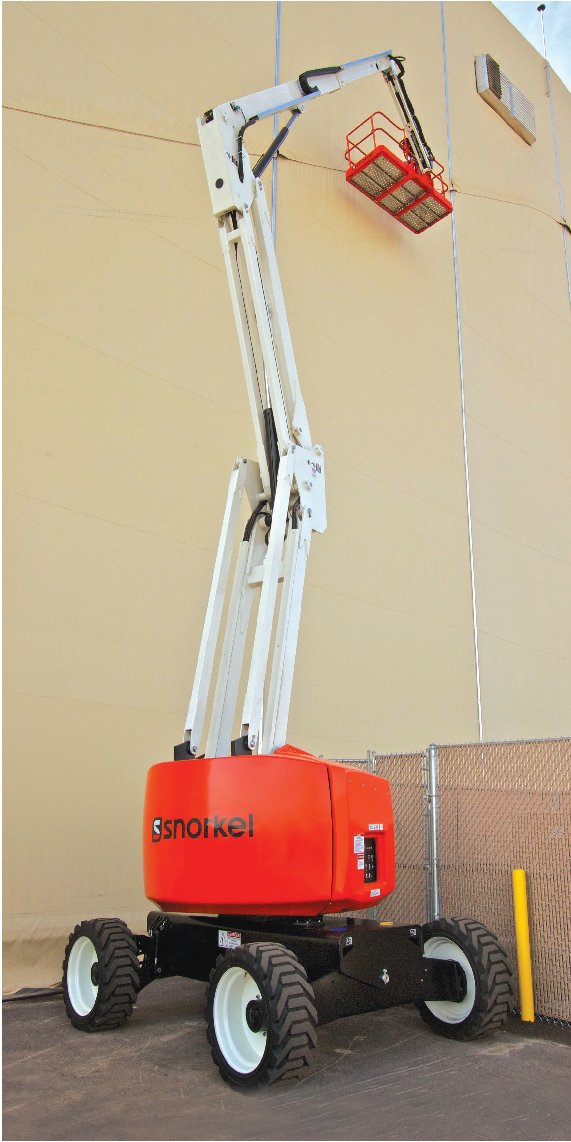

Snorkel A62JRT Specs
Quick-reference specifications for the Snorkel A62JRT aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 500 lb
- Max. working height
- 67 ft 8 in
- Weight
- 24,978 kg
- Gradeability
- 45%
Performance 14 specs
| Max. working height | 67 ft 8 in |
|---|---|
| Max. working outreach | 36 ft 6 in |
| Clearance height at max. outreach | 29 ft 6 in |
| Platform capacity (SWL) | 500 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 4 mph |
| Max. drive speed (elevated) | 0.75 mph |
| Platform rotation | 180º |
| Turret rotation (continuous) | 360º |
| Gradeability | 45% |
| Inside turning radius | 4 ft 6 in |
| Outside turning radius | 15 ft 5 in |
| Tyres | 355/55 D625 foam filled lug |
| Drive system | 4WD hydrostatic with oscillating axle |
Dimensions 10 specs
| Max. platform height | 61 ft 8 in |
|---|---|
| Platform size | 8 ft x 3 ft |
| Overall width (A) | 8 ft |
| Transport length | 27 ft 10 in |
| Overall length (B) | 28 ft 2.5 in |
| Stowed height (C) | 8 ft 5 in |
| Ground clearance | 1 ft 2 in |
| Max. drive height | 61 ft 8 in |
| Jib length | 6 ft |
| Tailswing | 0 m |
Weight 1 spec
| Weight | 24,978 kg |
|---|
