Aerial Lift · Snorkel

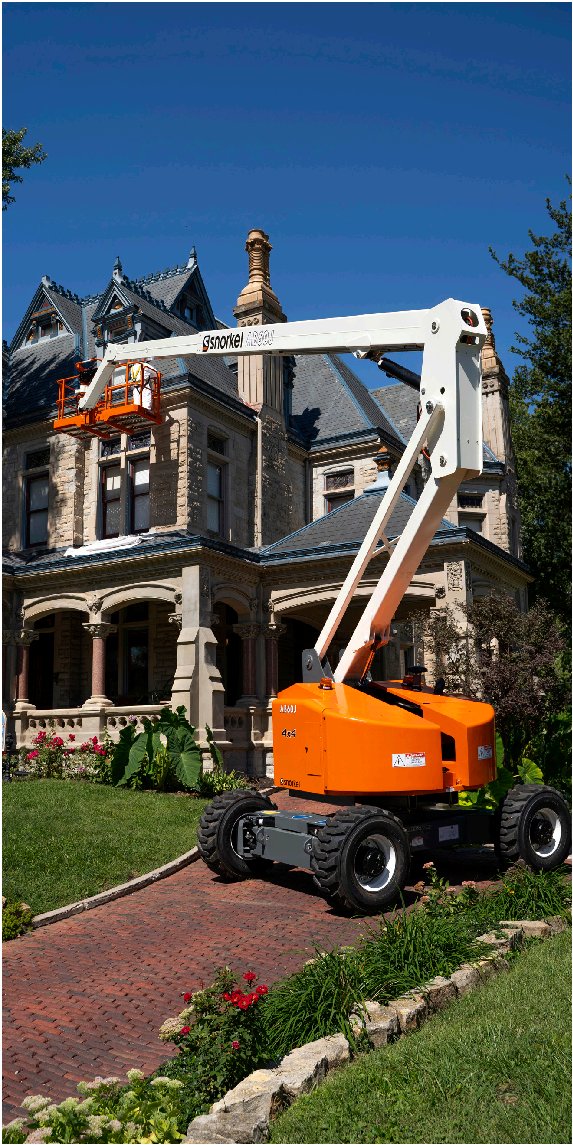

Snorkel AB60J Specs
Quick-reference specifications for the Snorkel AB60J aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Max. Working Height
- 65 ft 9 in20.04 m
Performance 9 specs
| Max. Working Height | 65 ft 9 in (20.04 m) |
|---|---|
| Max. Horizontal Reach | 43 ft 1 in (13.13 m) |
| Clearance Height @ Max. Outreach | 19 ft 6 in (5.94 m) |
| Platform Capacity | 500 lb (227 kg) |
| Max. Wind Speed | 28 mph (12.5 m/s) |
| Max. Drive Speed (Stowed) | 3.2 mph (5.15 km/h) |
| Max. Drive Speed (Elevated) | 0.6 mph (0.96 km/h) |
| Superstructure Rotation (Continuous) | 360° |
| Raise / Lower Time | 125 / 121 seconds |
Dimensions 8 specs
| Max. Platform Height | 59 ft 9 in (18.21 m) |
|---|---|
| Overall Length (A) | 29 ft 2 in (8.89 m) |
| Overall Width (B) | 7 ft 11.5 in (2.42 m) |
| Stowed Height (C) | 8 ft 3 in (2.51 m) |
| Ground Clearance | 12 in (305 mm) |
| Max. Drive Height | 59 ft 9 in (18.21 m) |
| Tailswing (Riser-boom Elevated) | 0 in (0.0 m) |
| Tailswing (Riser-boom Stowed) | 60 in (1.52 m) |
Power / Engine 1 spec
| Power Source | diesel engine |
|---|
