Aerial Lift · Snorkel

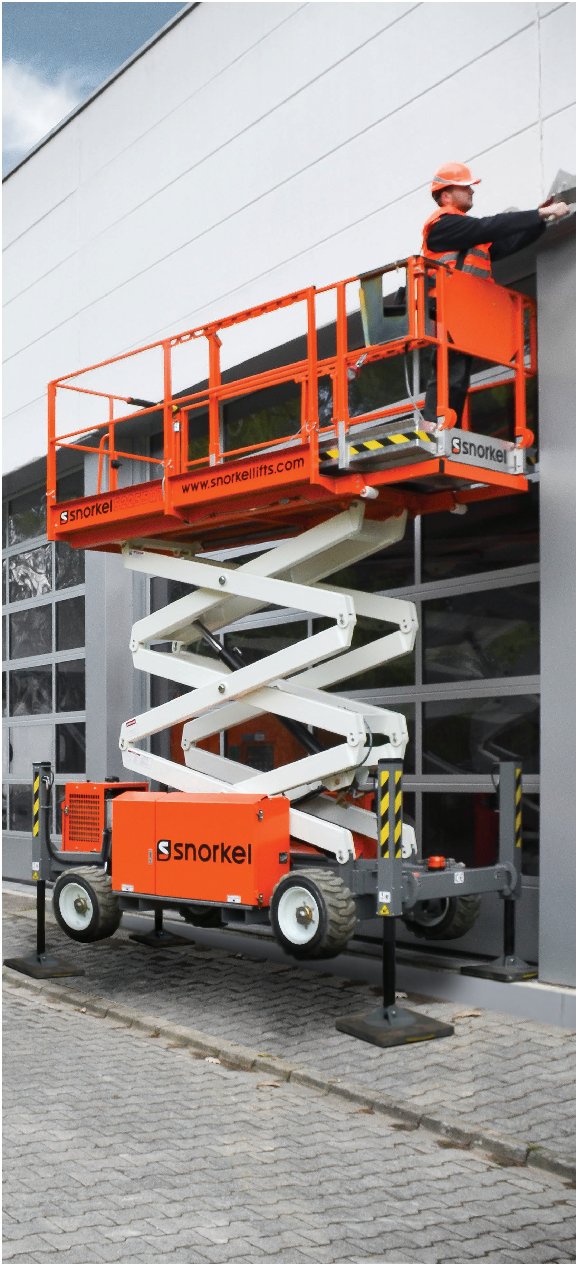

Snorkel S2255RT Specs
Quick-reference specifications for the Snorkel S2255RT aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 420 kg
- Max. working height
- 8.5 m
- Weight
- 2,410 kg
- Gradeability
- 35%
Performance 11 specs
| Max. working height | 8.5 m |
|---|---|
| Platform capacity (SWL) | 420 kg |
| Max. wind speed | 12.5 m/s |
| Max. drive speed (stowed) | 5.2 km/h |
| Max. drive speed (elevated) | 0.66 km/h |
| Raise/lower time | 26/30 sec |
| Gradeability | 35% |
| Max. outrigger levelling, front to rear | 6º |
| Max. outrigger levelling, side to side | 10º |
| Inside turning radius | 2.5 m |
| Outside turning radius | 4.75 m |
Dimensions 11 specs
| Max. platform height (A) | 6.5 m |
|---|---|
| Platform size (stowed) | 1.4 m x 2.73 m |
| Platform size (extended) | 1.4 m x 3.93 m |
| Extension deck length | 1.2 m |
| Overall width (B) | 1.45 m |
| Overall length (C) | 3.3 m |
| Stowed height (D) | 2.35 m |
| Min. height (guardrails folded) | 2.0 m |
| Ground clearance | 260 mm |
| Max.drive height | 6.2 m |
| Exit/entry angle | 20° |
Weight 1 spec
| Weight | 2,410 kg |
|---|
