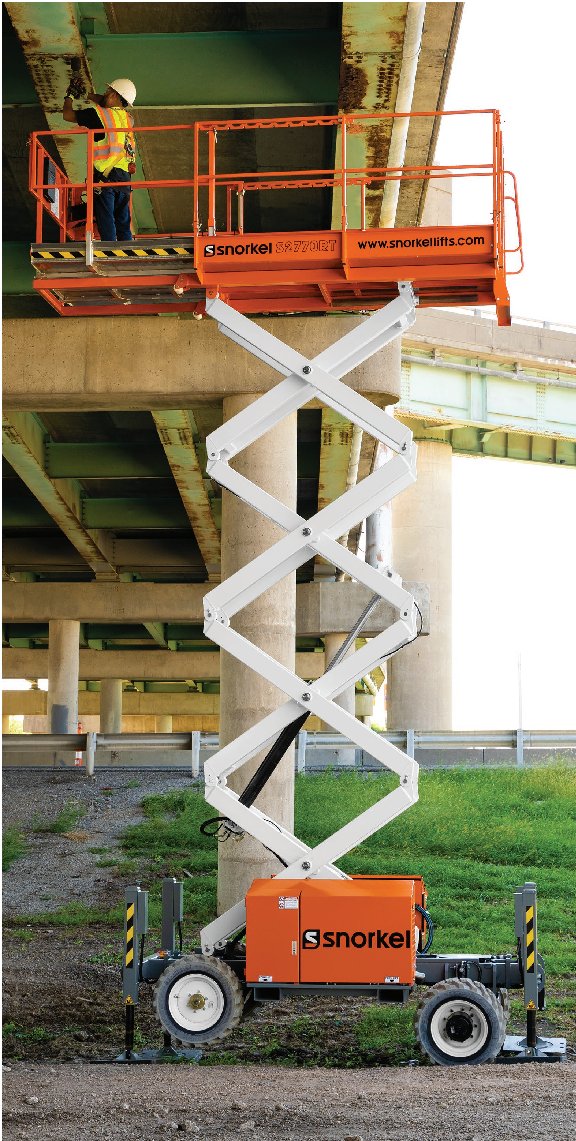

Snorkel S3370RT Specs
Quick-reference specifications for the Snorkel S3370RT aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 1,000 lb
- Max. working height
- 39 ft
- Weight
- 7,980 lb
- Gradeability
- 35%
Performance 12 specs
| Max. working height | 39 ft |
|---|---|
| Platform capacity (SWL) | 1,000 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 2.8 mph |
| Max. drive speed (elevated) | 0.2 mph |
| Raise/lower time | 50/60 sec |
| Gradeability | 35% |
| Max. stabilizer levelling, front to rear | 6º |
| Max. stabilizer levelling, side to side | 10º |
| Inside turning radius | 8 ft 10 in |
| Outside turning radius | 16 ft 3 in |
| Drive system | 4-wheel drive |
Dimensions 8 specs
| Max. platform height (A) | 33 ft |
|---|---|
| Extension deck length | 4 ft |
| Overall width (D) | 5 ft 10 in |
| Overall length (E) | 11 ft |
| Stowed height (F) | 9 ft |
| Min. height (guardrails folded) | 6 ft 6 in |
| Ground clearance | 13 in |
| Max. drive height | 33 ft |
Weight 1 spec
| Weight | 7,980 lb |
|---|
