Aerial Lift · Snorkel

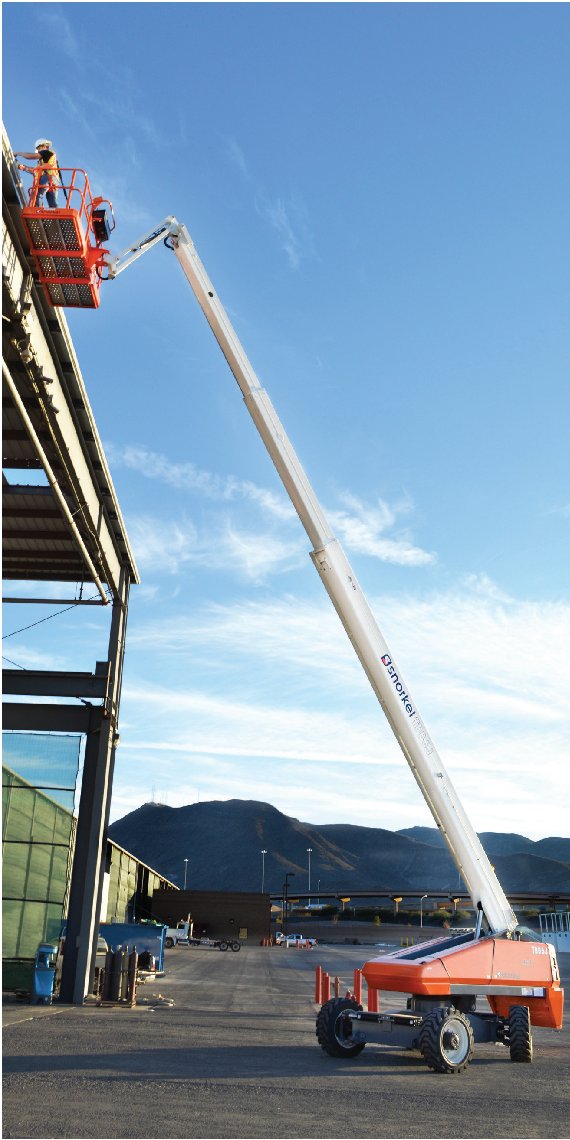

Snorkel TB80 Specs
Quick-reference specifications for the Snorkel TB80 aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 500 lb
- Max. working height
- 86 ft
- Weight
- 36,332 lb
- Gradeability
- 40%
Performance 16 specs
| Max. working height | 86 ft |
|---|---|
| Max. horizontal reach | 71 ft 2 in |
| Platform capacity | 500 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 3 mph |
| Max. drive speed (elevated) | 0.6 mph |
| Jib working arc | n/a |
| Platform rotation | 170° |
| Superstructure rotation (continuous) | 360° |
| Raise/lower time | 70/65 sec |
| Gradeability | 40% |
| Inside turning radius | 7 ft 10 in |
| Outside turning radius | 15 ft 6 in |
| Tires | x 625 foam filled lug |
| Drive system | 4-wheel drive |
| Airline to platform | AC generator 110 V/2.5 kW |
Dimensions 9 specs
| Max. platform height | 80 ft |
|---|---|
| Platform size | 8 ft x 3 ft |
| Overall width (A) | 8 ft 6 in |
| Overall length (B) | 38 ft 8 in |
| Stowed height (C) | 9 ft 6 in |
| Ground clearance | 13 in |
| Max. drive height | 80 ft |
| Jib length | n/a |
| Tailswing | 78.5 in |
Weight 1 spec
| Weight | 36,332 lb |
|---|
