Aerial Lift · Snorkel

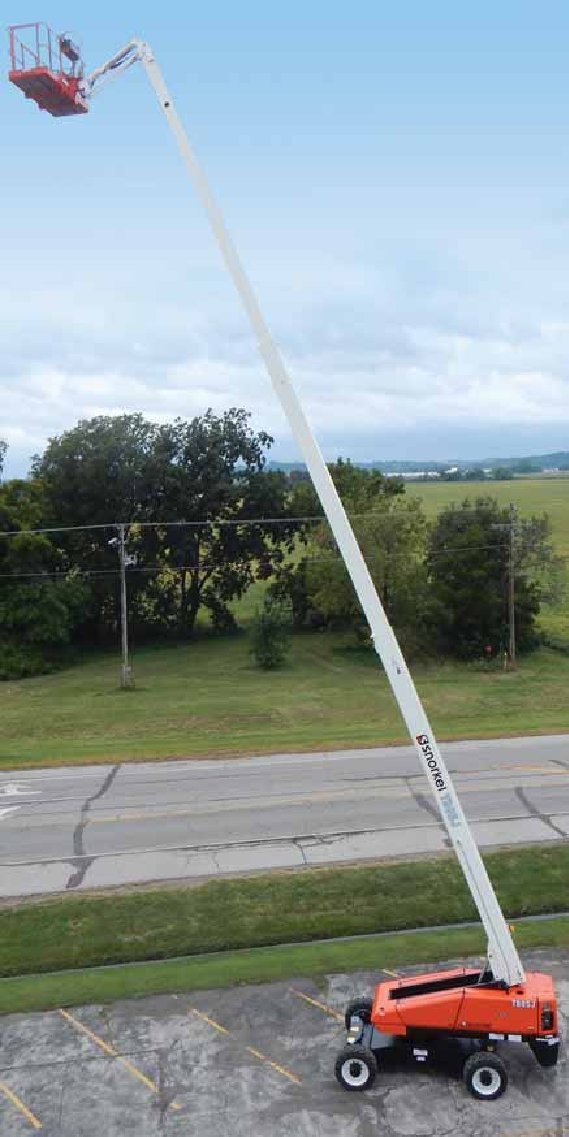

Snorkel TB85J Specs
Quick-reference specifications for the Snorkel TB85J aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity (SWL)
- 500 lb
- Max. working height
- 90 ft 11 in
- Weight
- 37,699 lb
- Gradeability
- 40%
Performance 13 specs
| Max. working height | 90 ft 11 in |
|---|---|
| Max. horizontal reach | 76 ft 9 in |
| Platform capacity (SWL) | 500 lb |
| Max. wind speed | 28 mph |
| Max. drive speed (stowed) | 2.9 mph |
| Max. drive speed (elevated) | 0.6 mph |
| Jib working arc | 140º |
| Platform rotation | 150º |
| Superstructure rotation | 360º continuous |
| Raise/lower time | 230/210 seconds |
| Gradeability | 40% |
| Inside turning radius | 7 ft 10 in |
| Outside turning radius | 15 ft 5 in |
Dimensions 9 specs
| Max. platform height | 84 ft 11 in |
|---|---|
| Platform size | 8 ft x 3 ft |
| Overall width (A) | 8 ft 6 in |
| Overall length (B) | 42 ft 3 in |
| Stowed height (C) | 9 ft 6 in |
| Ground clearance | 13 in |
| Max. drive height | 84 ft 11 in |
| Jib length | 5 ft 10 in |
| Tailswing | 79.5 in |
Weight 1 spec
| Weight | 37,699 lb |
|---|
