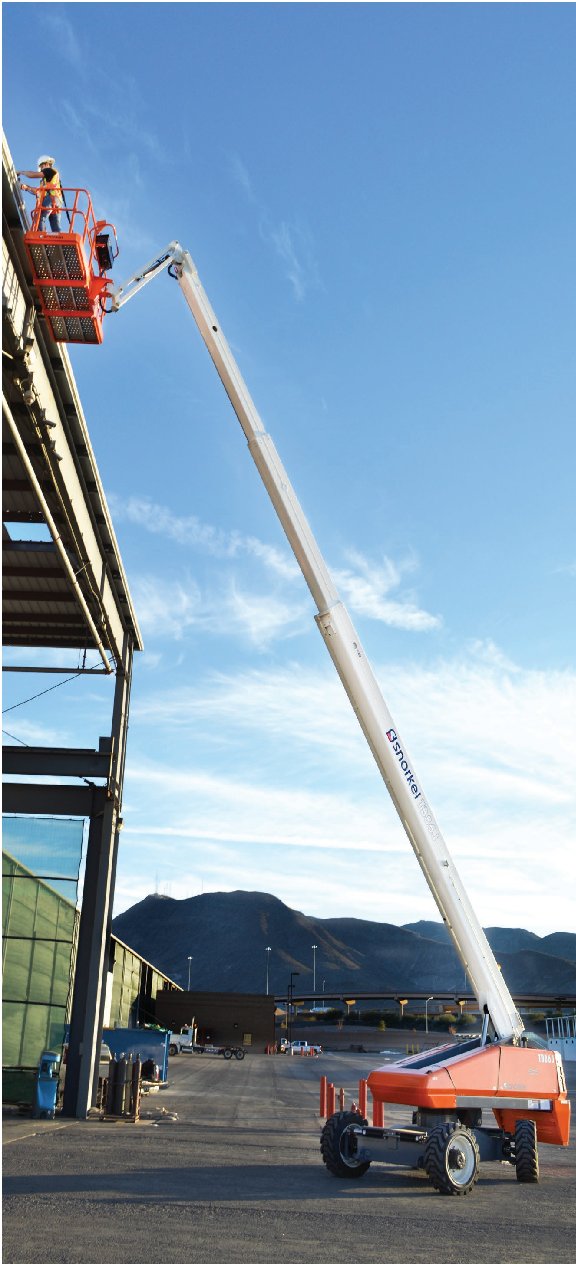

Snorkel TB86J Specs
Quick-reference specifications for the Snorkel TB86J aerial lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 227 kg
- Max. working height
- 28.2 m
- Weight
- 17,549 kg
- Gradeability
- 40%
Performance 12 specs
| Max. working height | 28.2 m |
|---|---|
| Max. working outreach | 23.9 m |
| Platform capacity | 227 kg |
| Max. wind speed | 12.5 m/s |
| Max. drive speed (stowed) | 4.8 km/h |
| Max. drive speed (elevated) | 1.0 km/h |
| Platform rotation | 150º |
| Turret rotation (continuous) | 360º |
| Raise/lower time | 70/65 sec |
| Gradeability | 40% |
| Inside turning radius | 2.4 m |
| Outside turning radius | 4.7 m |
Dimensions 9 specs
| Max. platform height | 26.2 m |
|---|---|
| Platform size | 0.91 m x 2.44 m |
| Overall width (A) | 2.6 m |
| Overall length (B) | 12.9 m |
| Stowed height (C) | 2.9 m |
| Ground clearance | 330 mm |
| Max. drive height | 26.2 m |
| Jib length | 2.0 m |
| Tailswing | 1.9 m |
Weight 1 spec
| Weight | 17,549 kg |
|---|
