Aerial Lift · Snorkel

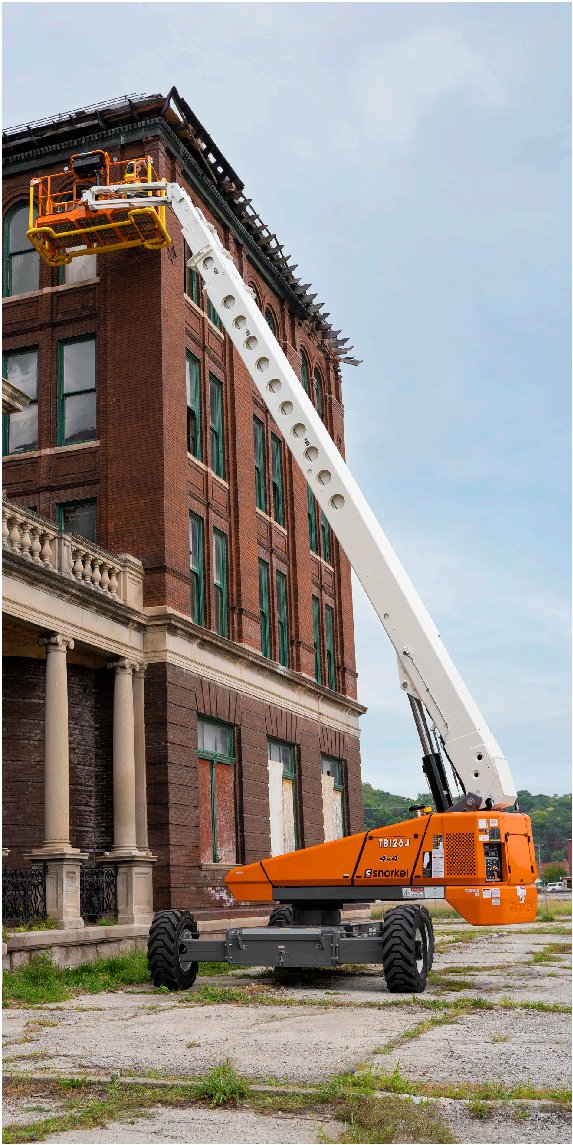

Snorkel TB126J Specs
Quick-reference specifications for the Snorkel TB126J aerial lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb226 kg
- Max. Working Height (A)
- 132 ft40.23 m
- Weight
- 41,800 lb18,960 kg
- Gradeability
- 30%
Performance 15 specs
| Max. Working Height (A) | 132 ft (40.23 m) |
|---|---|
| Max. Horizontal Reach | 62 ft 11 in (19.17 m) |
| Platform Capacity | 500 lb (226 kg) |
| Max. Wind Speed | 28 mph (12.5 m/s) |
| Max. Drive Speed (Stowed) | 2.9 mph (4.67 km/h) |
| Max. Drive Speed (Elevated) | 0.15 mph (0.24 km/h) |
| Gradeability | 30% |
| Jib Arc | 135° (+70°/-65°) |
| Platform Rotation | 180° |
| Superstructure Rotation | 360° continuous |
| Inside Turning Radius (Axles retracted) | 19 ft (5.79 m) |
| Outside Turning Radius | 33 ft (10.06 m) |
| Raise / Lower Time | 208 / 215 seconds |
| Tires (Foam-filled) | 445–65 D22.5 (44.5 cm x 114.9 cm) |
| Drive System | 4WD |
Dimensions 11 specs
| Max. Platform Height | 126 ft (38.40 m) |
|---|---|
| Platform Size | 8 ft x 3 ft (2.44 m x 0.91 m) |
| Overall Length (B) | 44 ft 9 in (13.64 m) |
| Overall Width (C) | 8 ft 6 in (2.59 m) |
| Overall Width (Axles extended) | 12 ft 9 in (3.88 m) |
| Stowed Height (D) | 10 ft 5 in (3.17 m) |
| Ground Clearance | 13 in (330 mm) |
| Max. Drive Height | 86 ft (26.21 m) |
| Jib Length | 6 ft 6 in (1.98 m) |
| Tailswing (Axles retracted) | 80.5 in (2.04 m) |
| Tailswing (Axles extended) | 54.25 in (1.38 m) |
Weight 1 spec
| Weight | 41,800 lb (18,960 kg) |
|---|
Power / Engine 1 spec
| Power Source | 65 hp Kubota V2403 diesel engine |
|---|
