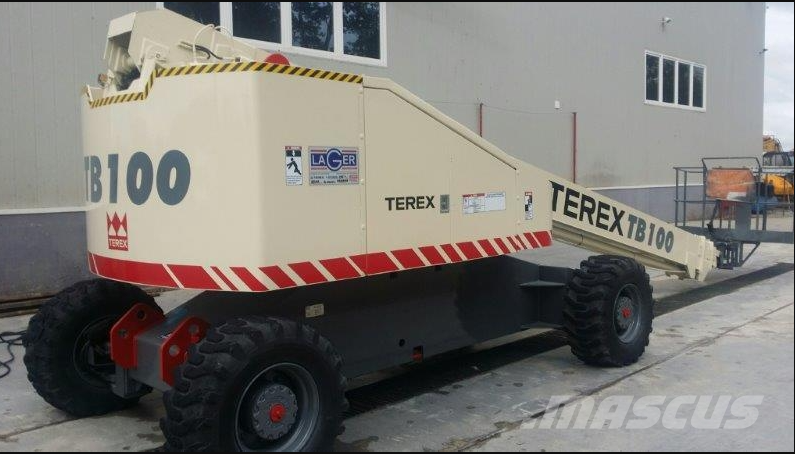

Terex TB100 Specs
Quick-reference specifications for the Terex TB100 boom lift, taken from the manufacturer’s spec sheet.
Performance 10 specs
| Platform (maximum) | 100 ft (30.48 m) |
|---|---|
| Horizontal Reach | 67 ft 4 in (20.52 m) |
| Load Capacity (maximum) | 500 lb (227 kg) |
| Load Capacity (maximum) – Opt. Platform | 450 lb (204 kg) |
| Platform Rotation | 160° |
| Turret Rotation | 360° Continuous |
| Turning Radius – Inside Curb | 22 ft 6 in (6.86 m) |
| Travel Speed – Stowed | 0 – 3.0 mph (0 – 4.83 km/h) |
| Travel Speed – Elevated | 0 – 0.5 mph (0 – 0.8 km/h) |
| Tires (monofilled) | 15 x 19.5 13 P.R. |
Dimensions 10 specs
| Height – Working (maximum) | 106 ft (32.31 m) |
|---|---|
| Length (stowed) | 34 ft 6 in (10.52 m) |
| Width (maximum) | 8 ft 1-1/2 in (2.48 m) |
| Boom Angle – Above Horizontal | 75° |
| Std. Platform Dimensions | 72 in x 36 in x 44 in (1.83 m x 0.91 m x 1.12 m) |
| Opt. Platform Dimensions | 96 in x 36 in x 44 in (2.44 m x 0.91 m x 1.12 m) |
| Wheelbase | 12 ft 0 in (3.66 m) |
| Wheel Track | 6 ft 9 in (2.06 m) |
| Turret Tailswing | 35 in (0.897 m) |
| Ground Clearance | 10.88 in (0.28 m) |
Weight 1 spec
| Approx. Shipping Weight | 39,300 lb (17,826 kg) |
|---|
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 40 gal (151 L) |
|---|---|
| Reservoir Capacity | 52 gal (197 L) |
