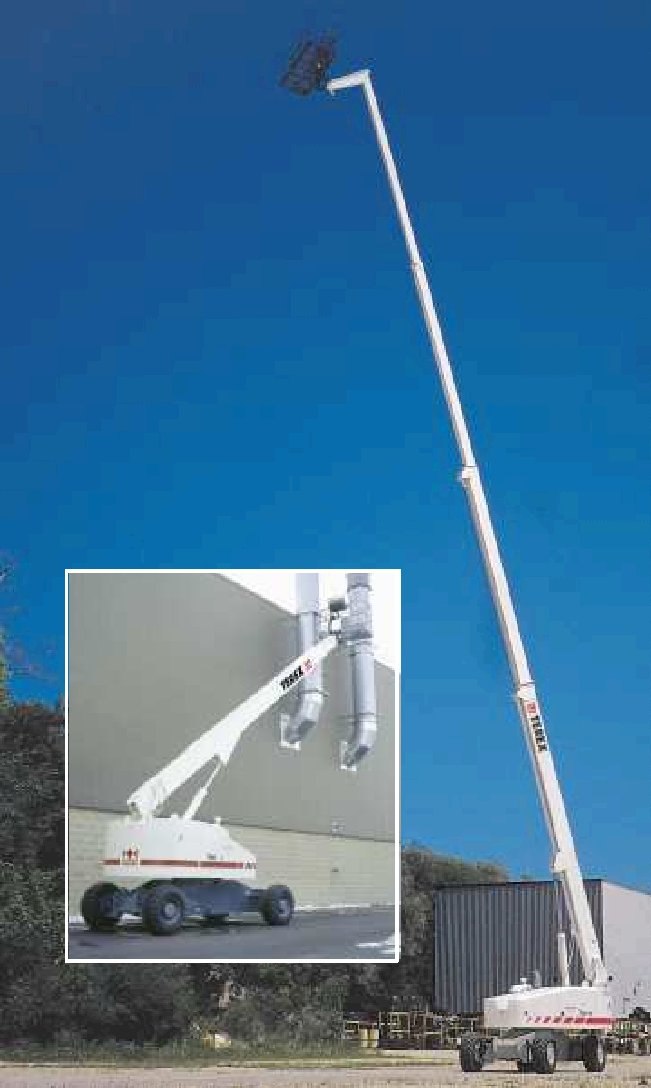

Terex TB110 Electric Spec Sheet
Quick-reference specifications for the Terex TB110 Electric. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Load Capacity (maximum): 550 lbs. (250 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Load Capacity (maximum) | 550 lbs. (250 kg) |
|---|---|
| Load Capacity (maximum) | 500 lbs. (227 kg) |
| Turret Tailswing | 35” (0.897 m) |
Dimensions
| Height – Working (maximum) | 91’ (27.73 m) |
|---|---|
| Length (stowed) | 36’ 9” (11.20 m) |
| Width (maximum) | 8’ 1-1/2” (2.48 m) |
| Std. Platform Dimensions | 72” x 36” x 44” |
| Opt. Platform Dimensions | 96” x 36” x 44” |
| Wheelbase | 12’ 0” (3.66 m) |
| Ground Clearance | 10.88” (0.28 m) |
Weights & Electrical
| Horizontal Reach | 70’ 0” (21.3 m) |
|---|---|
| Wheel Track | 6’ 9” (2.06 m) |
| Approx. Shipping Weight 37,300 lbs. (16 | 919 kg) |
| OPTIONS | 8′ (2.44 m) Universal platform (In place of standard 6′ (1.83 m) – TB85 and |
| plans, please contact your local Terex Aerials Distributor. | 70′ (21.3 m) |
Powertrain & Systems
| Tires (monofilled) 15 x 19.5 | 13 P.R. |
|---|---|
| F4L1011 – 56 hp (41.7 kw) air-cooled diesel engine or Ford LRG425 | 66 hp |
Hydraulics & Capacities
| Fuel Tank Capacity | 40 gal. (151 L) |
|---|---|
| Reservoir Capacity | 52 gal. (197 L) |
